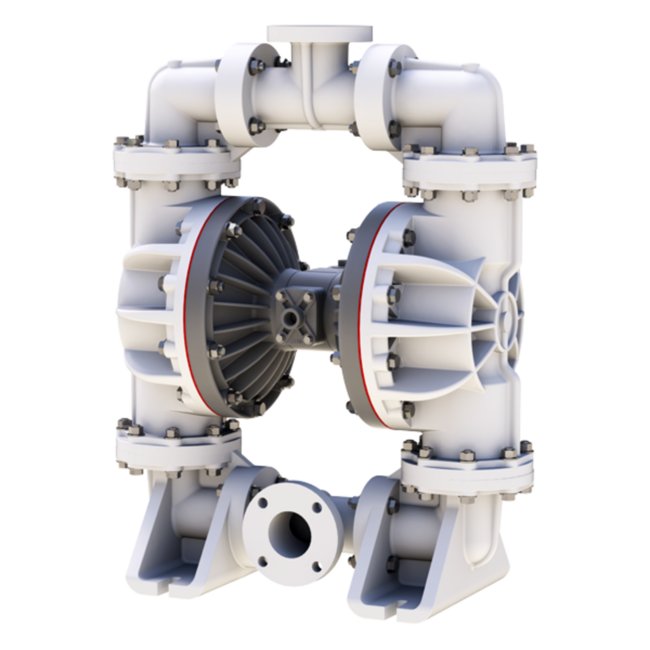

Sandpiper S30 Non-Metallic Top Discharge Standard Duty Ball Valve Pump
Sandpiper S30 Non-Metallic Top Discharge Standard Duty Ball Valve Pump
SKU:PRO-5ad664
Sandpiper S30 Non-Metallic Top Discharge Standard Duty Ball Valve Pump for bulk chemical transfer applications. Contact us for kit options.
Regular price
$1,999.99
Regular price
Sale price
$1,999.99
Unit price
per
Initiate Order
Sandpiper S30 Non-Metallic Top Discharge Standard Duty Ball Valve Pump
$1,999.99
Quantity: 1
Claim Your Seller Account
Sandpiper S30 Non-Metallic Top Discharge Standard Duty Ball Valve Pump
$1,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sandpiper S30 Non-Metallic Top Discharge Standard Duty Ball Valve Pump is engineered for bulk chemical transfer applications. With a 3 ANSI inch inlet size and a displacement of 1 gallon per stroke, this pump boasts polypropylene wetted M.O.C. and check valve seat for durability. Weighing 273 lbs, it delivers a maximum flow rate of 1.0 gpm. Contact us for Wet End Kit and Air End Kit options to enhance performance.
Product Specifications
Curves 0

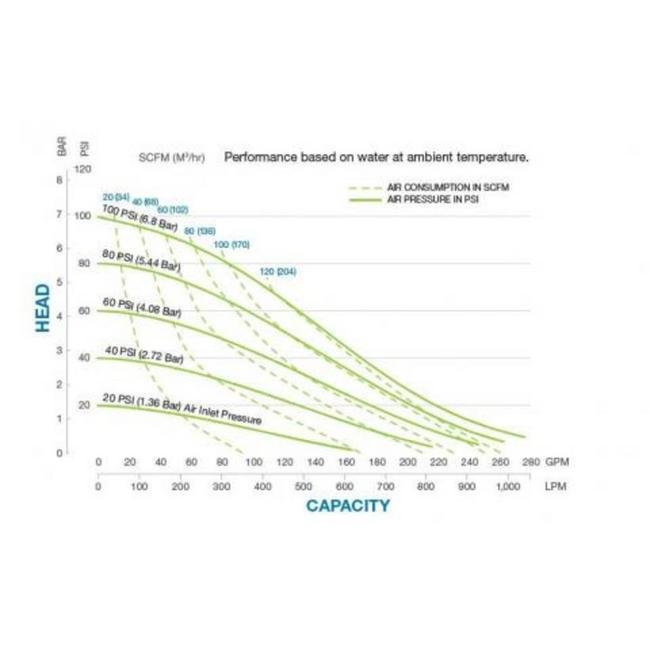

Performance Curves
Specifications Check Valve Seat
Polypropylene
Specifications Customs Code
HS Code 84131900
Specifications Displacement Per Stroke
1 gal | 3.79 lit
Specifications Height
3.39 ft | 41 in | 1.0328 m | 1032.76 mm
Specifications Inlet Size
3 ANSI in | 76 ANSI mm
Specifications Length
32 in | 820.67 mm
Specifications Max Flow Rate
1.0 gpm | 60.00 gph | 3.79 lpm
Specifications Non Wetted Material
Poly with PTFE Coated HDW
Specifications Porting Position
Top Discharge
Specifications Sku
WRS30B3P2P1AS000SP
Specifications Solids Handling
0.75 in | 19 mm
Specifications Weight
273 lbs | 123.83 kg
Specifications Wetted Moc
Polypropylene
Specifications Width
16 in | 411.23 mm
Category 6
Standard Duty Diaphragm Pumps
