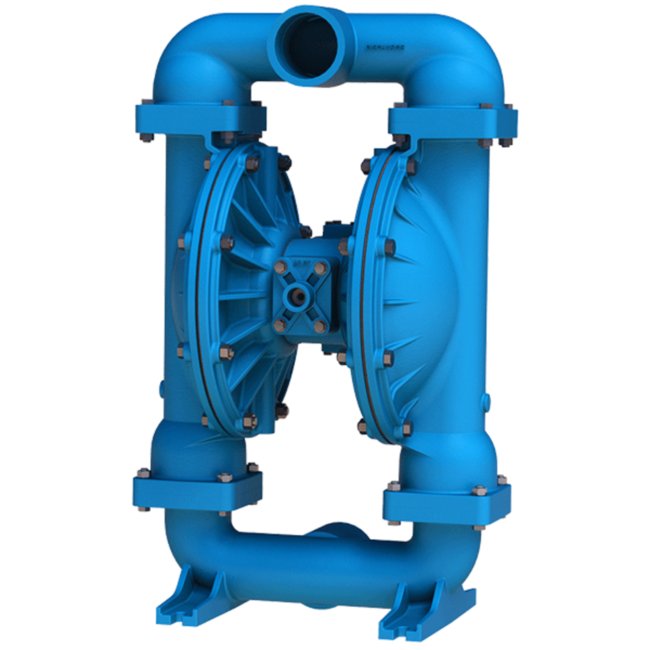

Sandpiper S30 Top Discharge Metallic Ball Valve Diaphragm Pump
Sandpiper S30 Top Discharge Metallic Ball Valve Diaphragm Pump
SKU:PRO-bf9305
Reliable Sandpiper S30 Metallic Ball Valve Pump for abrasive fluids. Ideal for standard duty applications.
Regular price
$1,875.99
Regular price
Sale price
$1,875.99
Unit price
per
Initiate Order
Sandpiper S30 Top Discharge Metallic Ball Valve Diaphragm Pump
$1,875.99
Quantity: 1
Claim Your Seller Account
Sandpiper S30 Top Discharge Metallic Ball Valve Diaphragm Pump
$1,875.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sandpiper S30 Top Discharge Metallic Ball Valve Diaphragm Pump from the S30 Evolution series is designed to efficiently handle intermittent/on-demand applications for moderately abrasive fluids and suspended solids. With TPE and PTFE diaphragm and check valve options, this pump ensures reliability and versatility. Its air-powered double diaphragm design, ball check valve type, and 0.25-inch solids handling capability make it ideal for standard duty applications. With a max flow rate of 235 gpm and a displacement of 0.94 gallons per stroke, the pump delivers consistent performance. Suitable for institutional use due to compliance with industry standards and durability in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0
Performance Curves
Specifications Check Valve Seat
Buna
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Design Level
1
Specifications Discharge Pipe Size Internal
3" BSPT Tapered | 3" NPT
Specifications Displacement Per Stroke
0.94 gal | 3.56 lit
Specifications Elastomers
Buna/Buna
Specifications Height
32 in | 814.83 mm
Specifications Intake Pipe Size Internal
3" BSPT Tapered | 3" NPT
Specifications Length
20 in | 499.11 mm
Specifications Max Flow Rate
0 - 235 gpm | 0 - 889 lpm
Specifications Non Wetted Material
Painted Aluminum
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS30B1IBBANS000SP
Specifications Solids Handling
0.25 in | 6 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty
Specifications Weight
215 lbs | 98 kg
Specifications Wetted Moc
Cast Iron
Specifications Width
16 in | 400.05 mm
Category 6
Standard Duty Diaphragm Pumps
