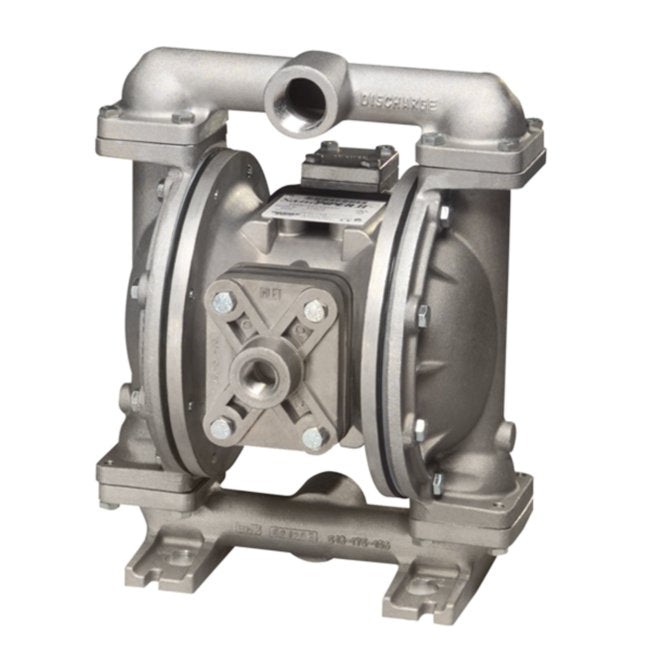

Sandpiper U1F Metallic Ball Valve Pump

Name: Sandpiper U1F Metallic Ball Valve Pump
Brand: Springer Pumps, LLC
SKU: PRO-8acfd3
Price: 3499.99 USD
Availability: OutOfStock

SKU:PRO-8acfd3

Experience safety and reliability with the Sandpiper U1F Metallic Ball Valve Pump. Engineered to meet UL79 standards with a groundable design, this pump ensures top-tier performance.

$3,499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sandpiper U1F Metallic Ball Valve Pump is engineered to meet UL79 standards for safe handling of flammable liquids. Designed with a groundable construction to prevent static discharge, this air-powered double diaphragm pump offers reliability and performance for various applications. With features such as a ball check valve and PTFE elastomers, this pump ensures efficient operation while maintaining safety standards. Explore additional accessories for enhanced functionality.

Product Specifications

Curves 0

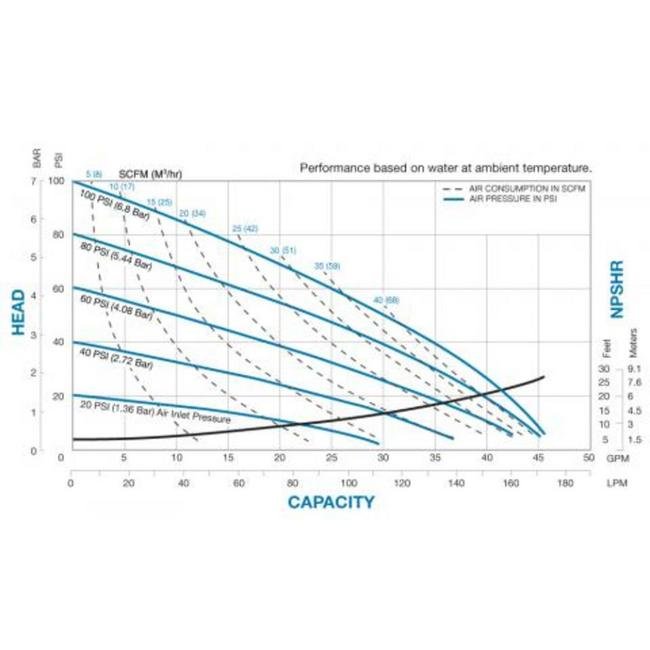

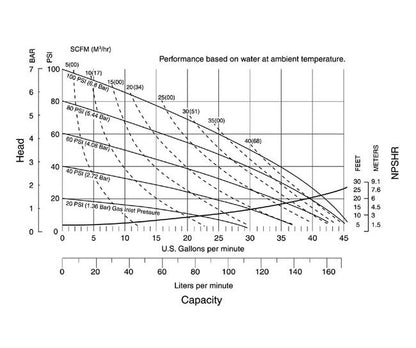

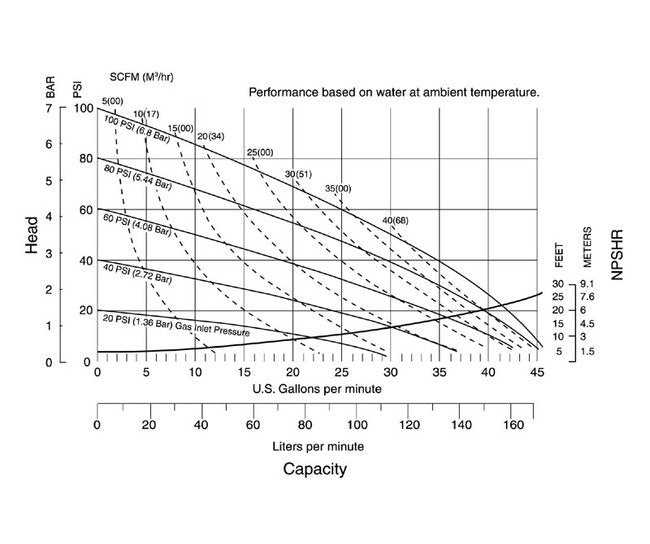

Performance Curves

Specifications Check Valve Seat

PTFE

Specifications Check Valve Type

Ball

Specifications Customs Code

HS Code 84131900ECCN Code EAR99

Specifications Design Level

Specifications Discharge Pipe Size Internal

1" BSPT Tapered | 1" NPT

Specifications Displacement Per Stroke

0.11 gal | 0.42 lit

Specifications Elastomers

PTFE - Neoprene/PTFE

Specifications Height

13 in | 323.09 mm

Specifications Intake Pipe Size Internal

1" BSPT Tapered | 1" NPT

Specifications Length

13 in | 317.50 mm

Specifications Max Flow Rate

0 - 45 gpm | 0 - 170 lpm

Specifications Non Wetted Material

Unpainted Aluminum

Specifications Porting Position

NPT Threads

Specifications Pump Style

Standard

Specifications Sku

WRU1FB1XGTXNS600SP

Specifications Solids Handling

0.25 in | 6 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD UL Listed | Pumps - Sandpiper UL Listed | Pumps - Sealless

Specifications Weight

53 lbs | 24 kg

Specifications Wetted Moc

Unpainted Aluminum

Specifications Width

10 in | 260.35 mm

Category 6

Standard Duty Diaphragm Pumps

Sandpiper U1F Metallic Ball Valve Pump
