Sandpiper U1F Metallic Level 1 Ball Valve Diaphragm Pump

Name: Sandpiper U1F Metallic Level 1 Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-8b9035
Price: 2799.99 USD
Availability: OutOfStock

SKU:PRO-8b9035

Reliable Sandpiper U1F Metallic Level 1 Ball Valve Pump for efficient pumping with durable materials and UL listing.

$2,799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sandpiper U1F Metallic Design Level 1 Ball Valve Pump is a reliable and efficient air-powered double diaphragm pump. With a max flow rate of up to 45 gpm, it effortlessly handles solids up to 0.25 inches. Constructed with conductive painted aluminum and featuring Buna/Buna elastomers, this pump ensures durability and effective performance. The ball check valve design and UL listing guarantee safe operation and compliance with industry standards.

Product Specifications

Specifications Check Valve Seat

PTFE

Specifications Check Valve Type

Ball

Specifications Design Level

Specifications Discharge Pipe Size Internal

1" BSPT Tapered | 1" NPT

Specifications Displacement Per Stroke

0.11 gal | 0.42 lit

Specifications Elastomers

Buna/Buna | PTFE - Neoprene/PTFE

Specifications Intake Pipe Size Internal

1" BSPT Tapered | 1" NPT

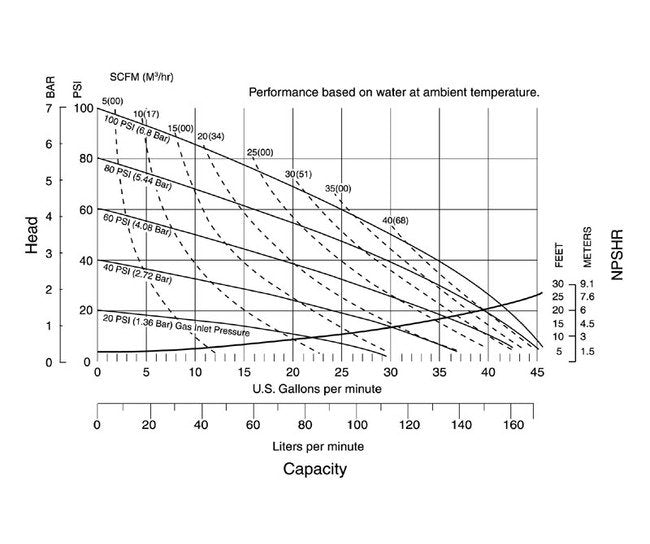

Specifications Max Flow Rate

0 - 45 gpm | 0 - 170 lpm

Specifications Non Wetted Material

Conductive Painted Aluminum | Unpainted Aluminum

Specifications Porting Position

BSPT (Tapered) Threads

Specifications Pump Style

Standard

Specifications Solids Handling

0.25 in | 6 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD UL Listed | Pumps - Sandpiper UL Listed | Pumps - Sealless

Specifications Weight

53 lbs | 24 kg

Specifications Wetted Moc

Conductive Painted Aluminum | Unpainted Aluminum
