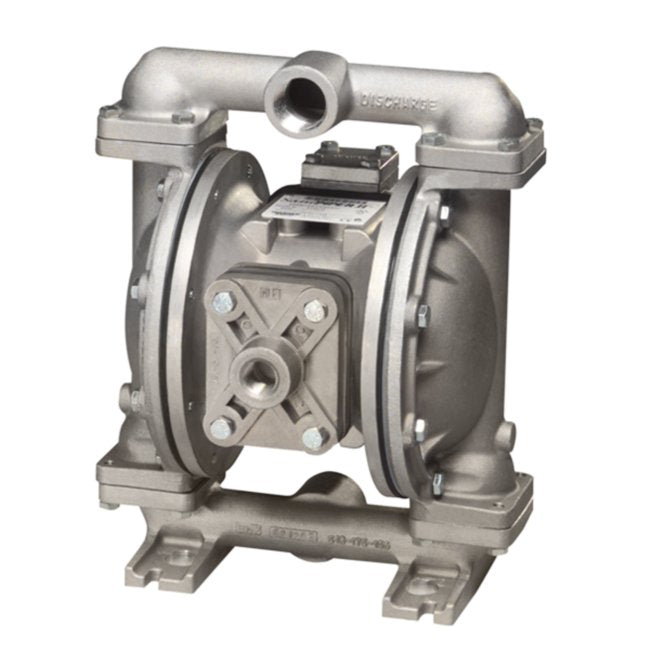

Sandpiper U1F Top Discharge Metallic Ball Valve Pump
Sandpiper U1F Top Discharge Metallic Ball Valve Pump
SKU:PRO-9ce57c
Reliable, compliant, and efficient metallic ball valve pump for flammable liquids. Meets UL79 standards. Max flow rate: 45 gpm.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Sandpiper U1F Top Discharge Metallic Ball Valve Pump
$1,499.99
Quantity: 1
Claim Your Seller Account
Sandpiper U1F Top Discharge Metallic Ball Valve Pump
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sandpiper U1F Metallic Design Level 1 Ball Valve Pump is engineered to meet UL79 standards for diaphragm pumps handling flammable liquids. With a fully groundable design to prevent static discharge, this air-powered double diaphragm pump offers reliable performance. Featuring a ball check valve type, unpainted aluminum construction, Buna/Buna elastomers, and PTFE check valve seat, this pump is suitable for various applications in water, wastewater, sump, and utility systems. With a maximum flow rate of 45 gpm and solids handling capacity of 0.25 inches, the Sandpiper U1F ensures efficient and safe fluid handling.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

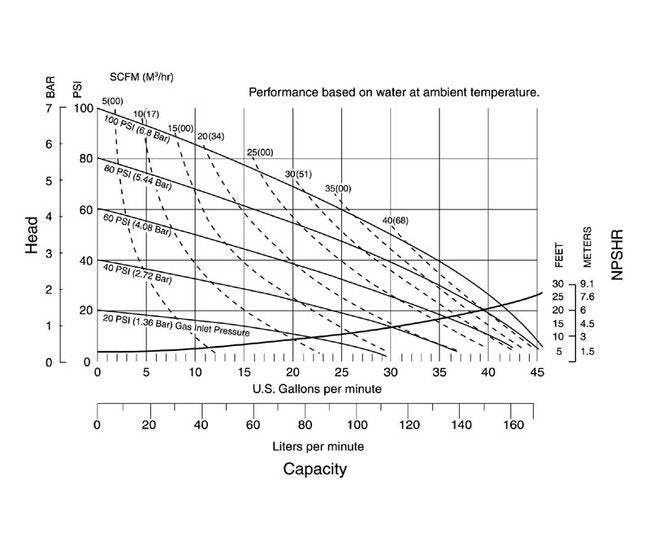

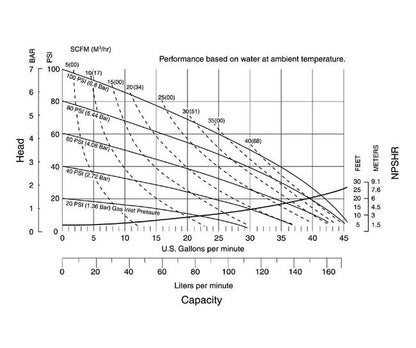

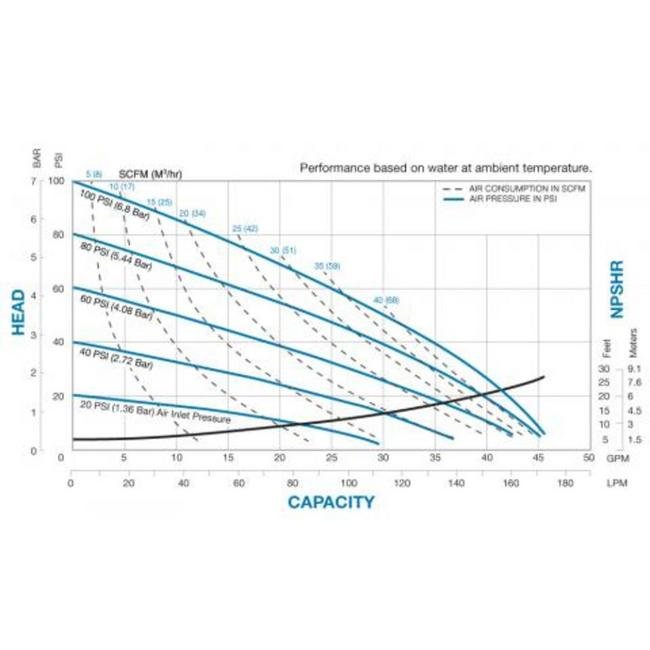

Performance Curves
Specifications Check Valve Seat
PTFE
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Design Level
1
Specifications Discharge Pipe Size Internal
1" BSPT Tapered | 1" NPT
Specifications Displacement Per Stroke
0.11 gal | 0.42 lit
Specifications Elastomers
Buna/Buna
Specifications Height
13 in | 323.09 mm
Specifications Intake Pipe Size Internal
1" BSPT Tapered | 1" NPT
Specifications Length
13 in | 317.50 mm
Specifications Max Flow Rate
0 - 45 gpm | 0 - 170 lpm
Specifications Non Wetted Material
Unpainted Aluminum
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRU1FB1XBTXNS600SP
Specifications Solids Handling
0.25 in | 6 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD UL Listed | Pumps - Sandpiper UL Listed | Pumps - Sealless
Specifications Weight
53 lbs | 24 kg
Specifications Wetted Moc
Unpainted Aluminum
Specifications Width
10 in | 260.35 mm
Category 6
Standard Duty Diaphragm Pumps
