SAUI Series 1/2in Tube to AN Flare Union
SAUI Series 1/2in Tube to AN Flare Union
SKU:SAU-fa6c8f
Enhance connections with our SAUI 1/2in Tube to AN Flare Union. Patented design for secure, efficient compression.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SAUI Series 1/2in Tube to AN Flare Union
$24.99
Quantity: 1
Claim Your Seller Account
SAUI Series 1/2in Tube to AN Flare Union
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

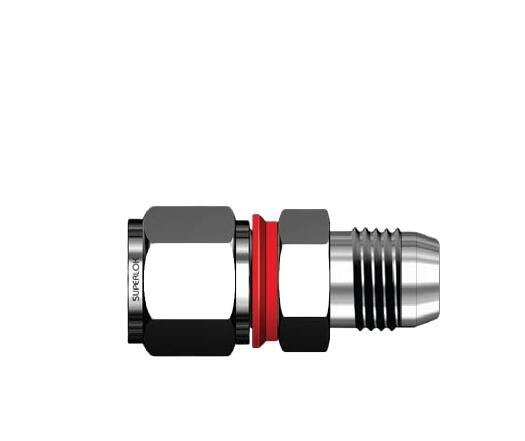

The SAUI Series 1/2in Tube to AN Flare Union facilitates secure connections between fractional tubes and AN flared tubes. Crafted from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this union features innovative i-Fitting® components designed to ensure perfect compression, enhancing safety and productivity in high-pressure environments. With dimensions meeting industry standards and a patented design by BMT, this union is reliable, efficient, and cost-effective for various applications.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

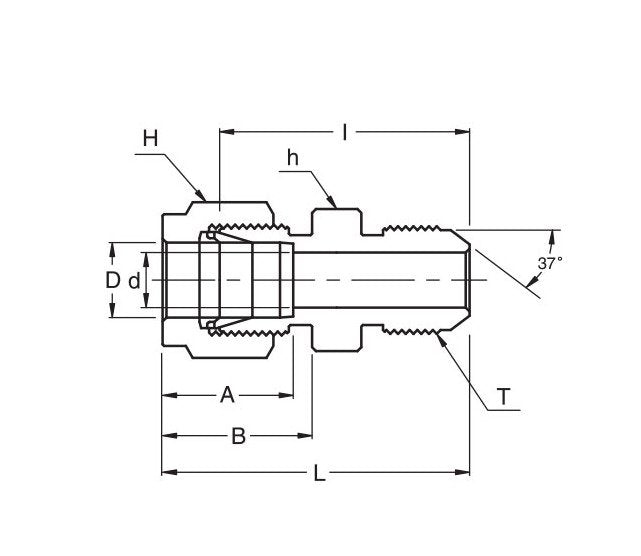

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs An Tube Flare Size
1/2 in
Technical Specs Dimension A
22.86 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension I
35.81 mm
Technical Specs Dimension L
45.97 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
9.90 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Straight Thread T U
3/4-16 mm
Technical Specs Tube Outside Diameter D
1/2 in
Technical Specs Width Across Flat H
7/8 in
