SAUI Series 1/4 Inch Tube Outside Diameter AN Tube Flare Size Union
SAUI Series 1/4 Inch Tube Outside Diameter AN Tube Flare Size Union
SKU:SAU-8339dc
High-quality SAUI Series union for secure tube connections with i-Fitting® design and built-in safety features.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SAUI Series 1/4 Inch Tube Outside Diameter AN Tube Flare Size Union
$29.99
Quantity: 1
Claim Your Seller Account
SAUI Series 1/4 Inch Tube Outside Diameter AN Tube Flare Size Union
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

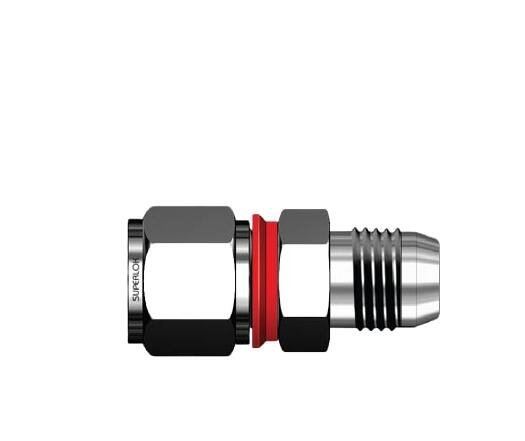

The SAUI Series 1/4 Inch Tube Outside Diameter AN Tube Flare Size Union is a high-quality fitting that connects fractional tubes to AN flared tubes. Made from a range of durable materials, including Alloy 625, Stainless Steel, and more, this fitting ensures a secure and leak-free connection. The innovative i-Fitting® design with a built-in check ring enhances installation safety, increases productivity, and reduces costs. Perfect for high-pressure and chemical environments, this union is a game-changer in the industry.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

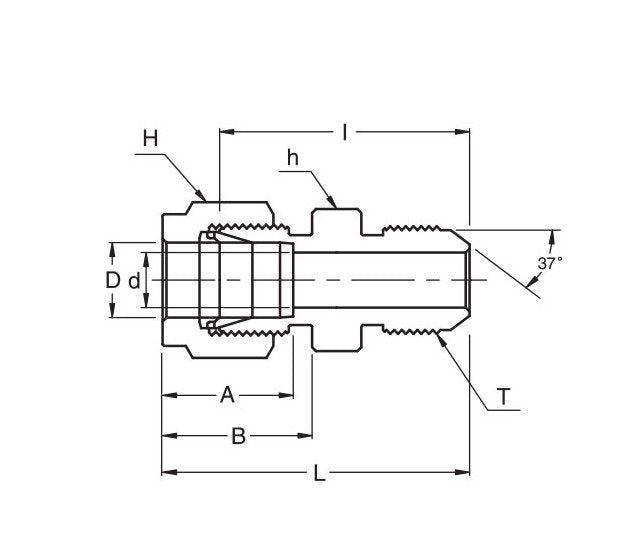

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs An Tube Flare Size
1/4 in
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension I
30.22 mm
Technical Specs Dimension L
37.59 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.31 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Straight Thread T U
7/16-20 mm
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
