SAUI Series 1-Inch Tube Outside Diameter (D) AN Union
SAUI Series 1-Inch Tube Outside Diameter (D) AN Union
SKU:SAU-34ae9c
Enhance connections with precision using our SAUI Series 1-Inch Tube Outside Diameter AN Union.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
SAUI Series 1-Inch Tube Outside Diameter (D) AN Union
$39.99
Quantity: 1
Claim Your Seller Account
SAUI Series 1-Inch Tube Outside Diameter (D) AN Union
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

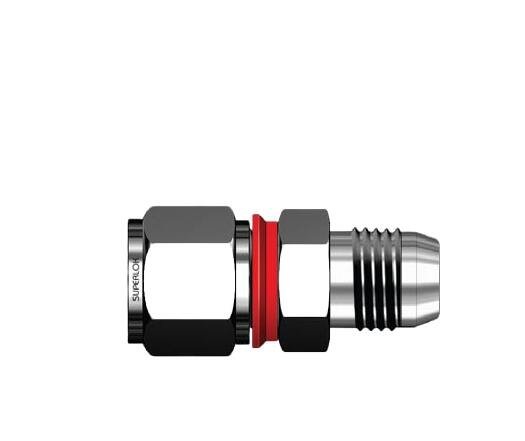

The SAUI Series 1-Inch Tube Outside Diameter AN Union is a precision-engineered connector designed to seamlessly join fractional tubes to flared tubes. Crafted from top-quality materials like Alloy 625 and stainless steel, this union ensures durability and superior performance. Featuring patented i-Fitting® components for increased safety and efficiency, it eliminates issues like over-tightening and under-tightening. Ideal for high-pressure and hazardous chemical environments, this union offers a reliable connection solution for a wide range of applications.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

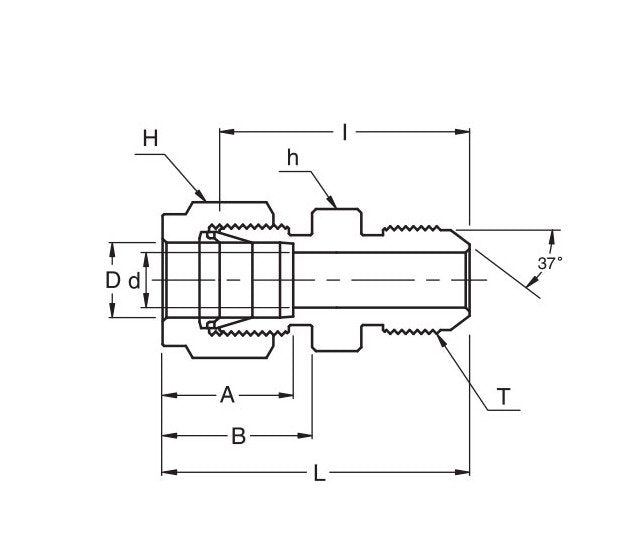

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs An Tube Flare Size
1 in
Technical Specs Dimension A
31.24 mm
Technical Specs Dimension B
26.41 mm
Technical Specs Dimension I
49.27 mm
Technical Specs Dimension L
61.46 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
21.33 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Straight Thread T U
1-5/16-12 mm
Technical Specs Tube Outside Diameter D
1 in
Technical Specs Width Across Flat H
1-1/2 in
