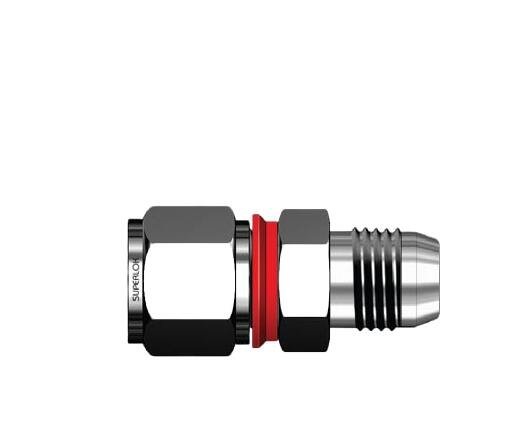

SAUI Series 25mm Tube OD & 1in AN Tube Flare Union
SAUI Series 25mm Tube OD & 1in AN Tube Flare Union
SKU:SAU-9309be
Efficiently connect tubes with the SAUI 25mm Tube OD & 1in AN Flare Union for superior safety & productivity.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SAUI Series 25mm Tube OD & 1in AN Tube Flare Union
$49.99
Quantity: 1
Claim Your Seller Account
SAUI Series 25mm Tube OD & 1in AN Tube Flare Union
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SAUI Series 25mm Tube Outside Diameter and 1in AN Tube Flare Size Union is designed to seamlessly connect fractional tubes to AN flared tubes. Made from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this union ensures durability and reliability. Featuring the innovative i-Fitting® design with a built-in gap gauge, it enhances safety, productivity, and cost-efficiency in high-pressure environments. Experience industry-leading performance with this patented union that revolutionizes valve connections.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

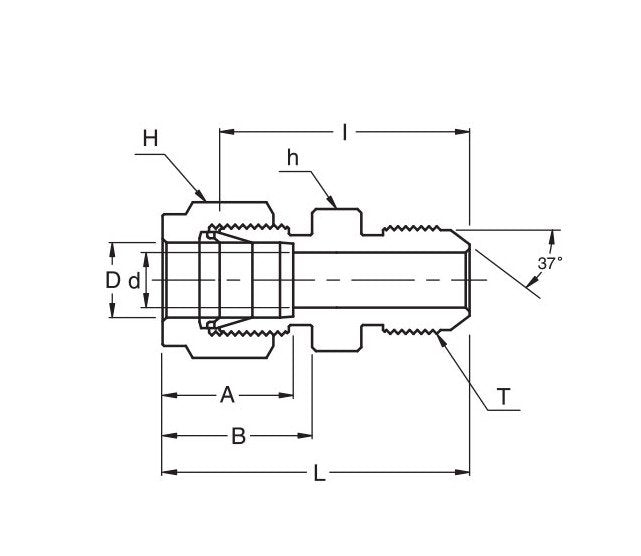

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs An Tube Flare Size
1 in
Technical Specs Dimension A
31.2 mm
Technical Specs Dimension B
26.4 mm
Technical Specs Dimension I
49.27 mm
Technical Specs Dimension L
61.4 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
21.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Straight Thread T U
1-5/16-12 mm
Technical Specs Tube Outside Diameter D
25 mm
Technical Specs Width Across Flat H
38 mm
