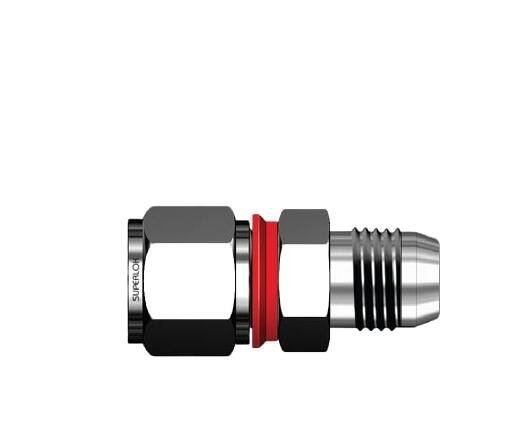

SAUI Series 6mm Tube to 1/4in AN Tube Flare Union
SAUI Series 6mm Tube to 1/4in AN Tube Flare Union
SKU:SAU-936c91
Precision-engineered union for seamless tube connections, featuring i-Fitting® technology for safety and productivity. Connects fractional tubes to AN flared tubes.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SAUI Series 6mm Tube to 1/4in AN Tube Flare Union
$29.99
Quantity: 1
Claim Your Seller Account
SAUI Series 6mm Tube to 1/4in AN Tube Flare Union
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SAUI Series 6mm Tube to 1/4in AN Tube Flare Union is a precision-engineered fitting that seamlessly connects fractional tubes to AN flared tubes. Crafted from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this union offers exceptional durability and resistance to corrosive environments. Featuring i-Fitting® components for perfect compression, improved safety, and enhanced productivity, this industry-changing design by BMT ensures reliable performance in high-pressure applications. With dimensions designed for optimal fit and ease of installation, this union is a must-have for efficient valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

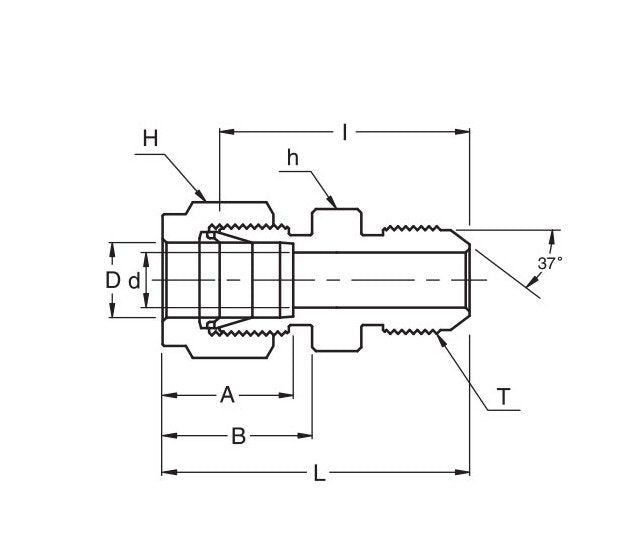

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs An Tube Flare Size
1/4 in
Technical Specs Dimension A
15.2 mm
Technical Specs Dimension B
17.7 mm
Technical Specs Dimension I
30.2 mm
Technical Specs Dimension L
37.5 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Straight Thread T U
7/16-20 mm
Technical Specs Tube Outside Diameter D
6 mm
Technical Specs Width Across Flat H
14 mm
