SAUI Series AN Tube Flare Size Union - 18mm OD x 3/4" AN
SAUI Series AN Tube Flare Size Union - 18mm OD x 3/4" AN
SKU:SAU-27fa2f
Enhance installations with the SAUI Series 18mm OD x 3/4" AN Tube Flare Size Union. Industry-changing design for secure connections and efficiency.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SAUI Series AN Tube Flare Size Union - 18mm OD x 3/4" AN
$29.99
Quantity: 1
Claim Your Seller Account
SAUI Series AN Tube Flare Size Union - 18mm OD x 3/4" AN
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

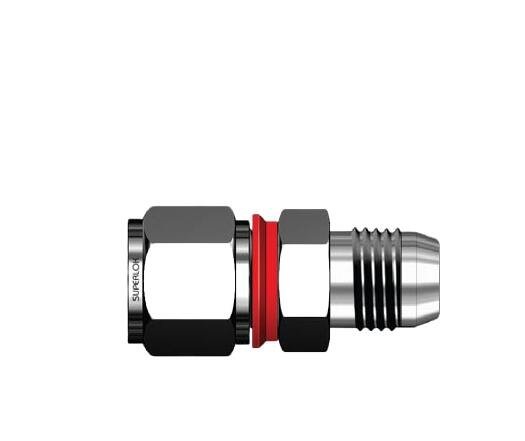

The SAUI Series 18mm Tube OD and 3/4" AN Tube Flare Size Union is a precision-engineered solution for connecting fractional tubes securely. This union features industry-changing i-Fitting® components that ensure perfect compression, enhancing safety, productivity, and cost-efficiency. Designed to meet high pressure and chemical environment requirements, it includes a built-in gap gauge, check ring, body, ferrules, and nuts for a reliable connection. With materials like Alloy 625, Stainless Steel, and more, this union guarantees durability and performance in various applications.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

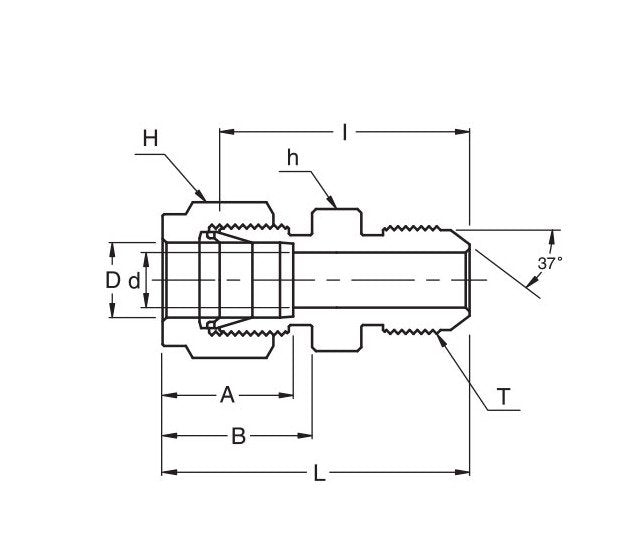

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs An Tube Flare Size
3/4 in
Technical Specs Dimension A
24.3 mm
Technical Specs Dimension B
21.8 mm
Technical Specs Dimension I
43.2 mm
Technical Specs Dimension L
53.3 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
15.1 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Straight Thread T U
1-1/16-12 mm
Technical Specs Tube Outside Diameter D
18 mm
Technical Specs Width Across Flat H
30 mm
