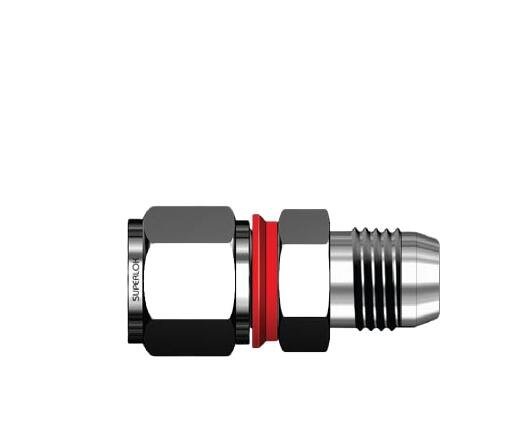

SAUI Series AN Tube Union 12mm (D) 1/2in (AN) Tube Flare Size
SAUI Series AN Tube Union 12mm (D) 1/2in (AN) Tube Flare Size
SKU:SAU-5f308f
Enhance connectivity with the SAUI Series AN Tube Union - Designed for precision, safety, and productivity in valve connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SAUI Series AN Tube Union 12mm (D) 1/2in (AN) Tube Flare Size
$24.99
Quantity: 1
Claim Your Seller Account
SAUI Series AN Tube Union 12mm (D) 1/2in (AN) Tube Flare Size
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SAUI Series AN Tube Union offers precise connectivity for fractional tubes to flared tubes. Crafted from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this union ensures durability and reliability in various applications. Featuring innovative i-Fitting® components with a patented design by BMT, it guarantees perfect compression, enhancing safety in high-pressure environments and optimizing productivity. Engineered with industry standards in mind, this union is a top choice for seamless valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

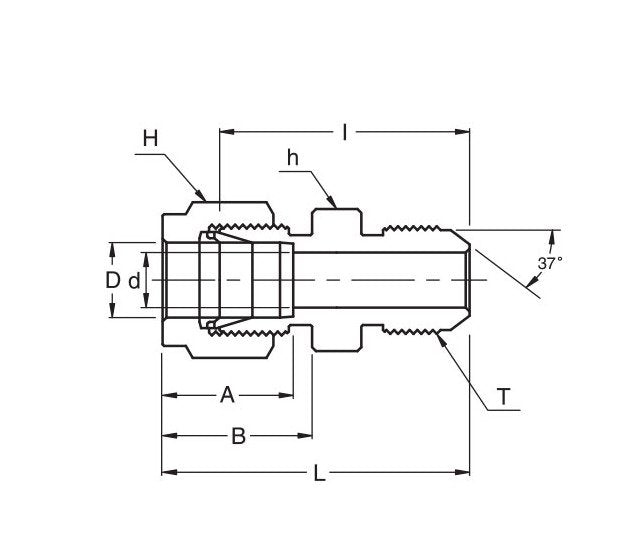

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs An Tube Flare Size
1/2 in
Technical Specs Dimension A
22.8 mm
Technical Specs Dimension B
21.8 mm
Technical Specs Dimension I
35.8 mm
Technical Specs Dimension L
45.9 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
9.5 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Straight Thread T U
3/4-16 mm
Technical Specs Tube Outside Diameter D
12 mm
Technical Specs Width Across Flat H
22 mm
