SAUI Series AN Tube Union - 3/8 in Tube OD, 1/4 in Flare Size
SAUI Series AN Tube Union - 3/8 in Tube OD, 1/4 in Flare Size
SKU:SAU-07204b
Effortlessly connect 3/8 in tubes to 1/4 in flared tubes with the SAUI Series AN Tube Union. Enhance safety and productivity in high-pressure environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SAUI Series AN Tube Union - 3/8 in Tube OD, 1/4 in Flare Size
$29.99
Quantity: 1
Claim Your Seller Account
SAUI Series AN Tube Union - 3/8 in Tube OD, 1/4 in Flare Size
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

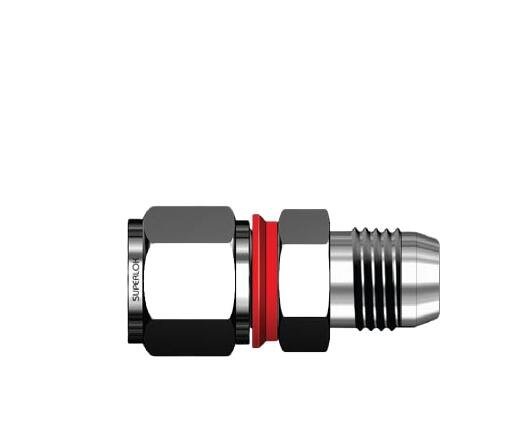

The SAUI Series AN Tube Union facilitates seamless connections between 3/8 in tubes and 1/4 in flared tubes. Crafted from high-quality materials such as Alloy 625, Stainless Steel, and more, it ensures durability and performance. Featuring BMT's innovative i-Fitting® components, this union offers optimal compression, enhanced safety, and increased productivity in high-pressure environments. Experience industry-leading design and reliability with the SAUI Series AN Tube Union.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

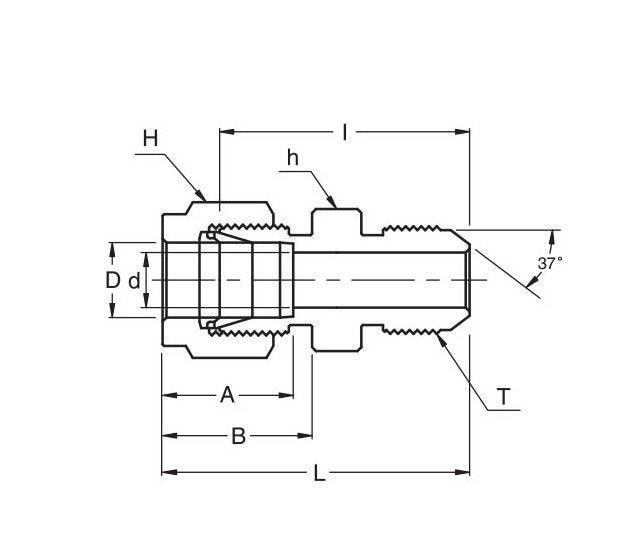

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs An Tube Flare Size
1/4 in
Technical Specs Dimension A
16.76 mm
Technical Specs Dimension B
19.30 mm
Technical Specs Dimension I
32.25 mm
Technical Specs Dimension L
39.62 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.31 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Straight Thread T U
7/16-20 mm
Technical Specs Tube Outside Diameter D
3/8 in
Technical Specs Width Across Flat H
11/16 in
