Saylor-Beall 1 1/2 HP Horizontal Tank Air Compressor
Saylor-Beall 1 1/2 HP Horizontal Tank Air Compressor
SKU:SAY-a348b5
Reliable Saylor-Beall 1 1/2 HP Air Compressor for industrial applications. Durable, efficient, and American-made.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Saylor-Beall 1 1/2 HP Horizontal Tank Air Compressor
$1,899.99
Quantity: 1
Claim Your Seller Account
Saylor-Beall 1 1/2 HP Horizontal Tank Air Compressor
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Saylor-Beall 1 1/2 HP Horizontal Tank Mounted Industrial Air Compressor is a robust and reliable solution designed for industrial, automotive service, and climate control applications. With a 60-gallon tank capacity and a motor power of 1-1/2 hp, this American-made compressor delivers efficient performance with a flow rate of 7.3 ft³/min at 100 psi and 5.8 ft³/min at 175 psi. Built with quality materials and precision engineering, this compressor ensures long-term durability and cost-effectiveness. Backed by Saylor-Beall's comprehensive warranty and expert service, it guarantees reliable operation for a wide range of demanding environments.
Product Specifications
Additional Information 0
Our reputation for quality is built on the foundation of manufacturing experience and service. At Saylor-Beall, we take pride in our many years of manufacturing air compressors.Put our experience and knowledge to work for you.100% machined, assembled, and tested for quality in our plant in St. Johns, Michigan. We take pride in manufacturing an American made product.AgricultureArchitectural/EngineeringGovernmentAnd Many Others
American Made 0
We take great pride in manufacturing an American made product. Our entire Saylor-Beall staff is committed to providing customers with the best air compressors available.
Assembly 0
Saylor-Beall air compressors are assembled by skilled personnel who are dedicated to the precision workmanship that our customers have come to expect. After final assembly, every compressor is tested to ensure that it meets our rigid standards of product quality.
Design And Engineering 0

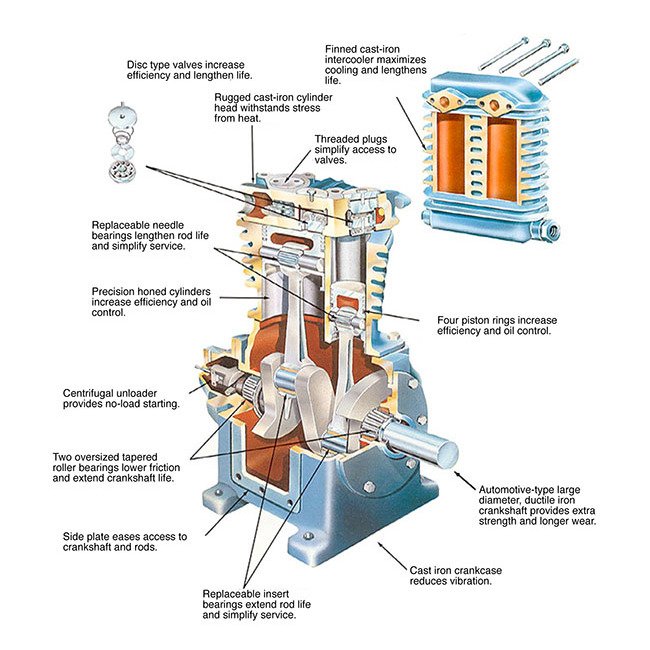

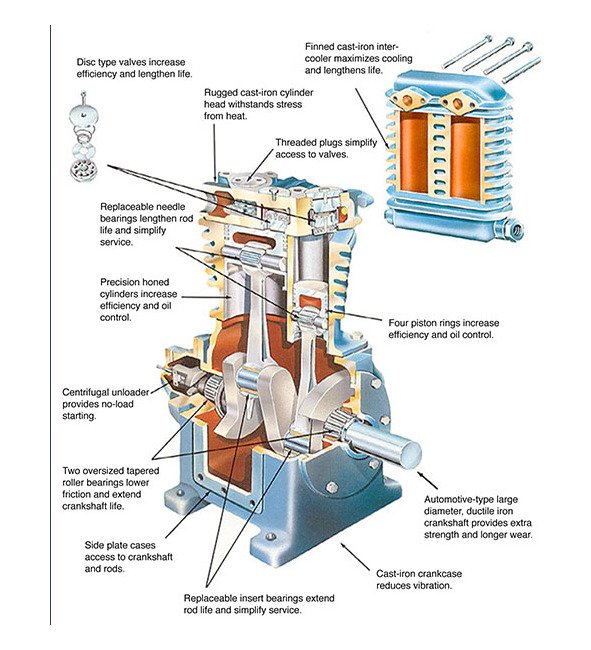

Quality and durability begin with design. Saylor-Beall products use materials selected for outstanding strength and heat resistant characteristics. Our pumps are manufactured to exact dimensions with precise tolerances which result in a highly efficient air compressor design.
Machining 0
Computer controlled, state-of-the-art equipment performs machining operations with extreme accuracy. In addition, our quality control procedures continuously monitor the machining process.
Piston Rings 0

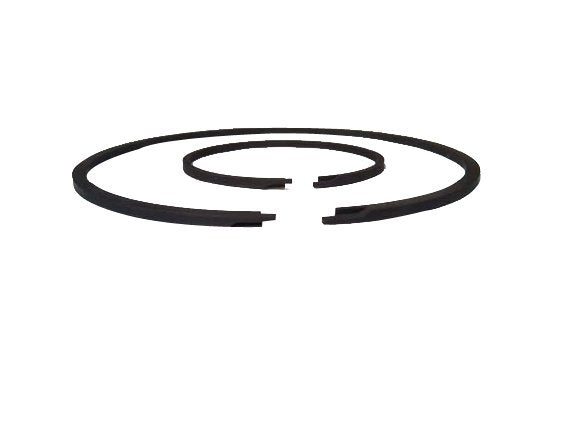

Saylor-Beall uses piston rings specifically designed for two-stage air compressors. They have a special taper and an overlapping joint to eliminate ring gap. This ensures less compressed air blow-by and reduces oil carry-over.
Quality Saves Money 0
Saylor-Beall has built cast iron, reciprocating air compressors since 1915. All products are made to provide many years of efficient, trouble free service. This commitment to quality reduces the overall cost of owning and operating a Saylor-Beall air compressor.
Service And Support 0
The Saylor-Beall name means you have bought more than just an air compressor; you have acquired the full support of an experienced air compressor company. Saylor-Beall stands behind every unit with a comprehensive warranty, as well as expert service and technical support. A network of active distributors throughout the U.S. and Canada assures convenient service and parts availability.
Specifications Approximately Shipping Weight
524 lb
Specifications Approximate Pump Shipping Weight
207 lb
Specifications Bolt Down Length
28 in
Specifications Bolt Down Width
19 in
Specifications Brand
Saylor-Beall
Specifications Delivered At 175 Psi Rating
5.8 ft³/min
Specifications Displaced At 175 Psi Rating
7.8 ft³/min
Specifications Flow Delivered At 100 Psi Rating
7.3 ft³/min
Specifications Flow Displaced At 100 Psi Rating
9.2 ft³/min
Specifications Height
47 in
Specifications Length
48 in
Specifications Motor Power
1-1/2 hp
Specifications Number Of Pump Cylinders
2
Specifications Pump Bolt Down Length
7-3/4 in
Specifications Pump Bolt Down Width
9 in
Specifications Pump Bore Diameter
1-7/8 in | 3-1/2 in
Specifications Pump Delivered At 175 Psi Rating
7.5 ft³/min
Specifications Pump Displaced At 175 Psi Rating
10.0 ft³/min
Specifications Pump Flow Delivered At 100 Psi Rating
8.3 ft³/min
Specifications Pump Flow Displaced At 100 Psi Rating
10.5 ft³/min
Specifications Pump Height
20-1/4 in
Specifications Pump Length
19-1/8 in
Specifications Pump Power
1-1/2 to 2 hp
Specifications Pump Speed At 100 Psi Rating
540 rpm
Specifications Pump Speed At 175 Psi Rating
510 rpm
Specifications Pump Stroke
3-1/2 in
Specifications Pump Width
11-5/8 in
Specifications Speed At 100 Psi Rating
475 rpm
Specifications Speed At 175 Psi Rating
400 rpm
Specifications Splash Lubricated Pump
703
Specifications Tank Capacity
60 gal
Specifications Width
21 in
