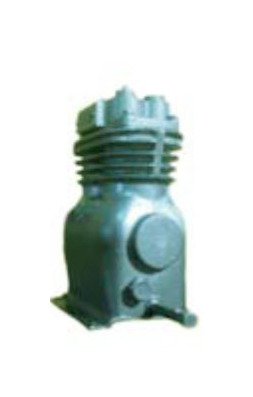

Saylor-Beall 10-15 HP Pressure Lubricated Industrial Air Piston Pump
Saylor-Beall 10-15 HP Pressure Lubricated Industrial Air Piston Pump
SKU:SAY-cf4187
Powerful 10-15 HP Industrial Air Piston Pump by Saylor-Beall, built for reliability and efficiency in diverse applications.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Saylor-Beall 10-15 HP Pressure Lubricated Industrial Air Piston Pump
$1,899.99
Quantity: 1
Claim Your Seller Account
Saylor-Beall 10-15 HP Pressure Lubricated Industrial Air Piston Pump
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Saylor-Beall 10-15 HP Pressure Lubricated Industrial Air Piston Pump is a top-tier solution designed for industrial, automotive, climate control, process control, agricultural, governmental, and architectural/engineering applications. With a pump power of 10 to 15 hp, pump speed at 100 psi rating of 830 rpm, and precise construction using quality materials, this pump ensures reliable, efficient performance. Saylor-Beall's commitment to quality craftsmanship, American-made durability, and expert support make this piston pump a cost-effective and long-lasting investment for institutional buyers.
Product Specifications
Additional Information 0
Our reputation for quality is built on the foundation of manufacturing experience and service. At Saylor-Beall, we take pride in our many years of manufacturing air compressors.Put our experience and knowledge to work for you.AgricultureArchitectural/EngineeringGovernmentAnd Many Others
American Made 0
We take great pride in manufacturing an American made product. Our entire Saylor-Beall staff is committed to providing customers with the best air compressors available.
Assembly 0
Saylor-Beall air compressors are assembled by skilled personnel who are dedicated to the precision workmanship that our customers have come to expect. After final assembly, every compressor is tested to ensure that it meets our rigid standards of product quality.
Design And Engineering 0
Quality and durability begin with design. Saylor-Beall products use materials selected for outstanding strength and heat resistant characteristics. Our pumps are manufactured to exact dimensions with precise tolerances which result in a highly efficient air compressor design.
Machining 0
Computer controlled, state-of-the-art equipment performs machining operations with extreme accuracy. In addition, our quality control procedures continuously monitor the machining process.
Piston Rings 0
Saylor-Beall uses piston rings specifically designed for two-stage air compressors. They have a special taper and an overlapping joint to eliminate ring gap. This ensures less compressed air blow-by and reduces oil carry-over.
Quality Saves Money 0
Saylor-Beall has built cast iron, reciprocating air compressors since 1915. All products are made to provide many years of efficient, trouble free service. This commitment to quality reduces the overall cost of owning and operating a Saylor-Beall air compressor.
Service And Support 0
The Saylor-Beall name means you have bought more than just an air compressor; you have acquired the full support of an experienced air compressor company. Saylor-Beall stands behind every unit with a comprehensive warranty, as well as expert service and technical support. A network of active distributors throughout the U.S. and Canada assures convenient service and parts availability.
Specifications Approximate Pump Shipping Weight
462 lb
Specifications Brand
Saylor-Beall
Specifications Number Of Pump Cylinders
2
Specifications Pump Bolt Down Length
12-3/8 in
Specifications Pump Bolt Down Width
12-3/4 in
Specifications Pump Bore Diameter
3-1/4 in | 6-1/8 in
Specifications Pump Delivered At 175 Psi Rating
51.0 ft³/min
Specifications Pump Displaced At 175 Psi Rating
63.7 ft³/min
Specifications Pump Flow Delivered At 100 Psi Rating
52.2 ft³/min
Specifications Pump Flow Displaced At 100 Psi Rating
63.7 ft³/min
Specifications Pump Height
27 in
Specifications Pump Length
26-1/2 in
Specifications Pump Power
10 to 15 hp
Specifications Pump Speed At 100 Psi Rating
830 rpm
Specifications Pump Speed At 175 Psi Rating
830 rpm
Specifications Pump Stroke
4-1/2 in
Specifications Pump Width
17-1/4 in
Warranty 0
Saylor-Beall Manufacturing Company warrants its compressors and parts when properly installed, lubricated and maintained as recommended and in accordance with good industry practice to be free from defects in material and workmanship under normal use and service. The responsibility of the Company under this warranty is limited to repair or replacement at the Company's factory, any compressor or part there of, which shall, within one year after date of shipment to the original purchaser, be returned to the Company and which, upon examination, shall be found defective to the satisfaction of the Company. This warranty shall not apply to compressors or parts which have been subjected to misapplication, misuse, negligence or accident, to compressors or parts which have been repaired or tampered with outside the Company's factory when in the judgement of the Company, it appears that the reliability or stability of the compressor or part has been effected. Ordinary maintenance, such as adjustment and cleaning of equipment or components is the responsibility of the owner. All transportation and shipping charges shall be paid by purchaser. This warranty does not apply to electric motors or gasoline engines. These are covered by the Original Manufacturer's Warranty and should be returned by the purchaser to their authorized station for service. This warranty is expressly in lieu of all other warranties (except of title) expressed or implied and of any other obligations or liability on the part of the Company. There are no warranties of merchantability or of fitness for a particular purpose
