Saylor-Beall 20 HP Horizontal Tank Mounted Air Compressor
Saylor-Beall 20 HP Horizontal Tank Mounted Air Compressor
SKU:SAY-94841e
Powerful 20 HP Industrial Air Compressor - Durable, Efficient & Made in USA
Regular price
$5,799.99
Regular price
Sale price
$5,799.99
Unit price
per
Initiate Order
Saylor-Beall 20 HP Horizontal Tank Mounted Air Compressor
$5,799.99
Quantity: 1
Claim Your Seller Account
Saylor-Beall 20 HP Horizontal Tank Mounted Air Compressor
$5,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Saylor-Beall 20 HP Horizontal Tank Mounted Industrial Air Compressor is a high-performance solution for industrial, automotive, climate control, and process control applications. With a 200-gallon tank capacity and impressive specifications like 102.1 ft³/min flow displaced at 100 psi, 665 rpm speed at 100 psi, and durable cast iron construction, this air compressor ensures reliable and efficient operation. Designed and assembled in the USA, it comes with a comprehensive warranty, expert service, and support, making it the ideal choice for those seeking quality and durability.
Product Specifications
Additional Information 0
Our reputation for quality is built on the foundation of manufacturing experience and service. At Saylor-Beall, we take pride in our many years of manufacturing air compressors.Put our experience and knowledge to work for you.100% machined, assembled, and tested for quality in our plant in St. Johns, Michigan. We take pride in manufacturing an American made product.AgricultureArchitectural/EngineeringGovernmentAnd Many Others
American Made 0
We take great pride in manufacturing an American made product. Our entire Saylor-Beall staff is committed to providing customers with the best air compressors available.
Assembly 0
Saylor-Beall air compressors are assembled by skilled personnel who are dedicated to the precision workmanship that our customers have come to expect. After final assembly, every compressor is tested to ensure that it meets our rigid standards of product quality.
Design And Engineering 0

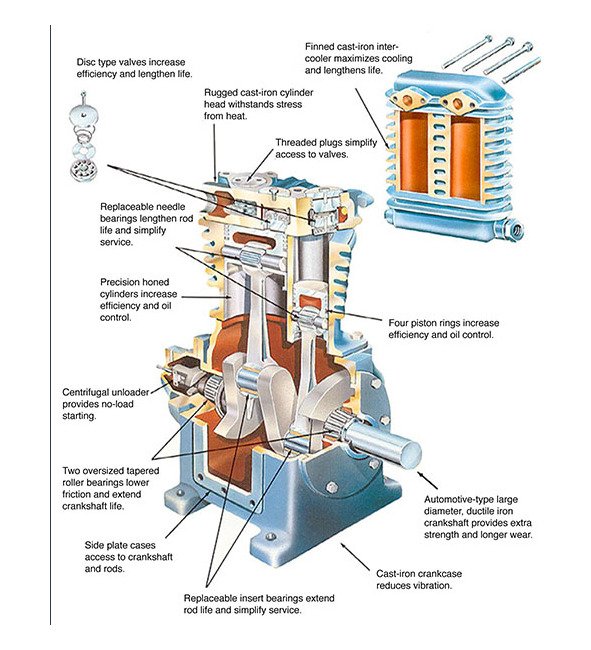

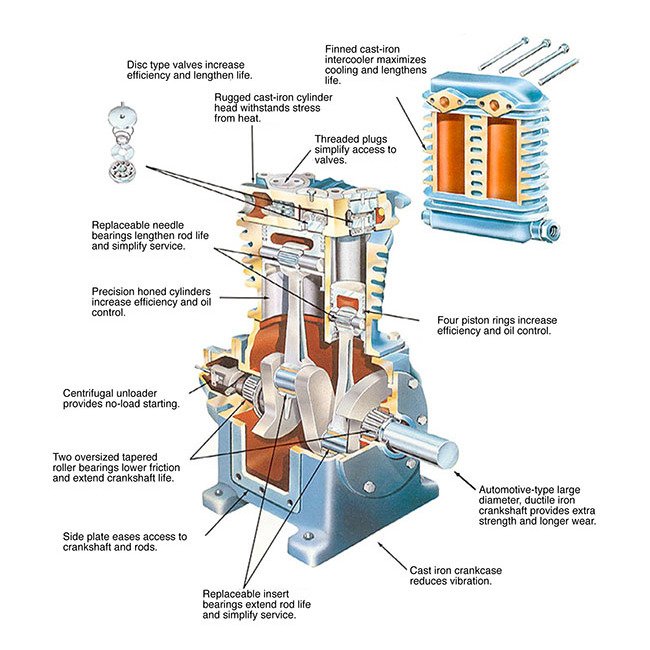

Quality and durability begin with design. Saylor-Beall products use materials selected for outstanding strength and heat resistant characteristics. Our pumps are manufactured to exact dimensions with precise tolerances which result in a highly efficient air compressor design.
Machining 0
Computer controlled, state-of-the-art equipment performs machining operations with extreme accuracy. In addition, our quality control procedures continuously monitor the machining process.

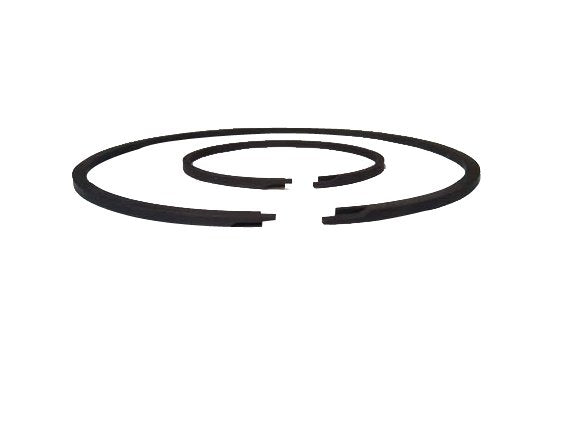

Piston Rings 0
Saylor-Beall uses piston rings specifically designed for two-stage air compressors. They have a special taper and an overlapping joint to eliminate ring gap. This ensures less compressed air blow-by and reduces oil carry-over.
Quality Saves Money 0
Saylor-Beall has built cast iron, reciprocating air compressors since 1915. All products are made to provide many years of efficient, trouble free service. This commitment to quality reduces the overall cost of owning and operating a Saylor-Beall air compressor.
Service And Support 0
The Saylor-Beall name means you have bought more than just an air compressor; you have acquired the full support of an experienced air compressor company. Saylor-Beall stands behind every unit with a comprehensive warranty, as well as expert service and technical support. A network of active distributors throughout the U.S. and Canada assures convenient service and parts availability.
Specifications Approximately Shipping Weight
1643 lb
Specifications Approximate Pump Shipping Weight
678 lb
Specifications Bolt Down Length
40 in
Specifications Bolt Down Width
19 in
Specifications Brand
Saylor-Beall
Specifications Delivered At 175 Psi Rating
76.1 ft³/min
Specifications Displaced At 175 Psi Rating
92.8 ft³/min
Specifications Flow Delivered At 100 Psi Rating
86.1 ft³/min
Specifications Flow Displaced At 100 Psi Rating
102.1 ft³/min
Specifications Height
63 in
Specifications Length
78 in
Specifications Motor Power
20 hp
Specifications Number Of Pump Cylinders
4
Specifications Pump Bolt Down Length
12-3/8 in
Specifications Pump Bolt Down Width
12-3/4 in
Specifications Pump Bore Diameter
3-1/4 in | 6-1/8 in
Specifications Pump Delivered At 175 Psi Rating
101.1 ft³/min
Specifications Pump Displaced At 175 Psi Rating
127.4 ft³/min
Specifications Pump Flow Delivered At 100 Psi Rating
104.5 ft³/min
Specifications Pump Flow Displaced At 100 Psi Rating
127.4 ft³/min
Specifications Pump Height
27 in
Specifications Pump Length
26-1/2 in
Specifications Pump Power
15 to 30 hp
Specifications Pump Speed At 100 Psi Rating
830 rpm
Specifications Pump Speed At 175 Psi Rating
830 rpm
Specifications Pump Stroke
4-1/2 in
Specifications Pump Width
17-1/4 in
Specifications Speed At 100 Psi Rating
665 rpm
Specifications Speed At 175 Psi Rating
605 rpm
Specifications Splash Lubricated Pump
9000
Specifications Tank Capacity
200 gal
Specifications Width
30 in
