Saylor-Beall 3 HP Horizontal Tank Mounted Industrial Air Compressor
Saylor-Beall 3 HP Horizontal Tank Mounted Industrial Air Compressor
SKU:SAY-d17da8
Get reliable power with the Saylor-Beall 3 HP Industrial Air Compressor - built for durability and efficiency in industrial settings.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Saylor-Beall 3 HP Horizontal Tank Mounted Industrial Air Compressor
$1,899.99
Quantity: 1
Claim Your Seller Account
Saylor-Beall 3 HP Horizontal Tank Mounted Industrial Air Compressor
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Saylor-Beall 3 HP Horizontal Tank Mounted Industrial Air Compressor is a reliable and powerful solution for a wide range of industrial applications. With a tank capacity of 60 gallons and a motor power of 3 HP, this American-made compressor delivers high performance and efficiency. Designed for durability and quality, it features precision-machined components, splash lubricated pump, and piston rings optimized for reduced oil carry-over. Backed by Saylor-Beall's commitment to excellence and a comprehensive warranty, this compressor is ideal for industries such as automotive services, climate control, and process/instrument control.
Product Specifications
Additional Information 0
Our reputation for quality is built on the foundation of manufacturing experience and service. At Saylor-Beall, we take pride in our many years of manufacturing air compressors.Put our experience and knowledge to work for you.100% machined, assembled, and tested for quality in our plant in St. Johns, Michigan. We take pride in manufacturing an American made product.AgricultureArchitectural/EngineeringGovernmentAnd Many Others
American Made 0
We take great pride in manufacturing an American made product. Our entire Saylor-Beall staff is committed to providing customers with the best air compressors available.
Assembly 0
Saylor-Beall air compressors are assembled by skilled personnel who are dedicated to the precision workmanship that our customers have come to expect. After final assembly, every compressor is tested to ensure that it meets our rigid standards of product quality.
Design And Engineering 0

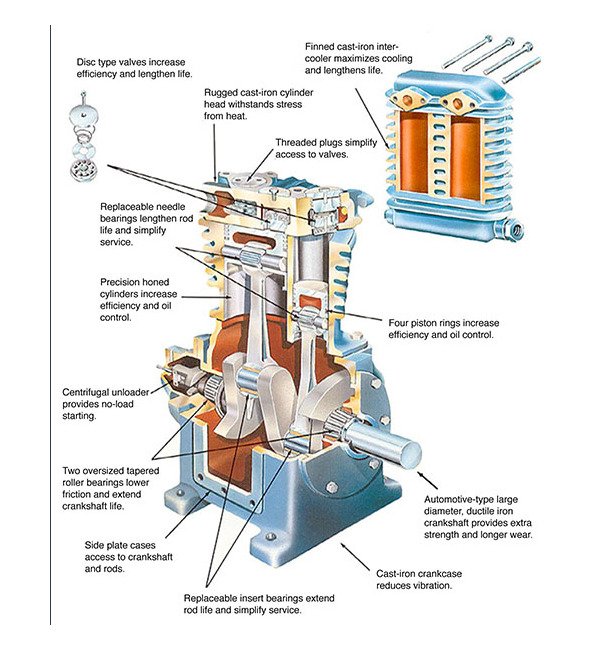

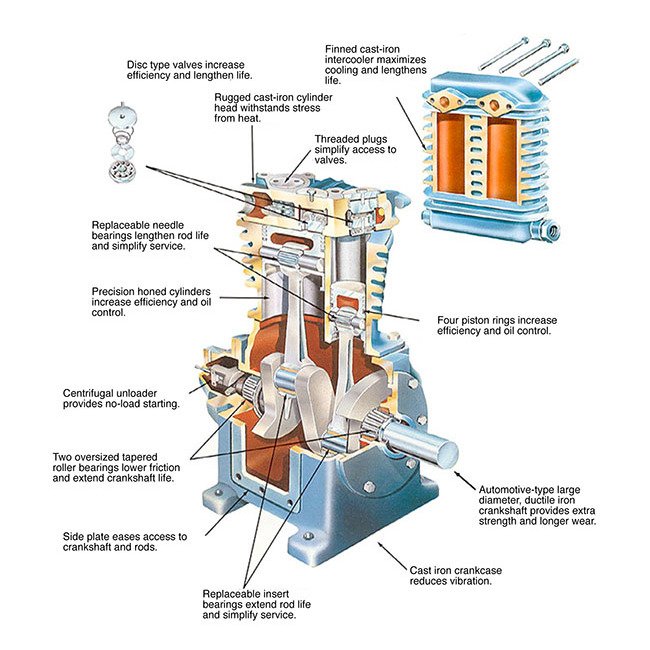

Quality and durability begin with design. Saylor-Beall products use materials selected for outstanding strength and heat resistant characteristics. Our pumps are manufactured to exact dimensions with precise tolerances which result in a highly efficient air compressor design.
Machining 0
Computer controlled, state-of-the-art equipment performs machining operations with extreme accuracy. In addition, our quality control procedures continuously monitor the machining process.
Piston Rings 0

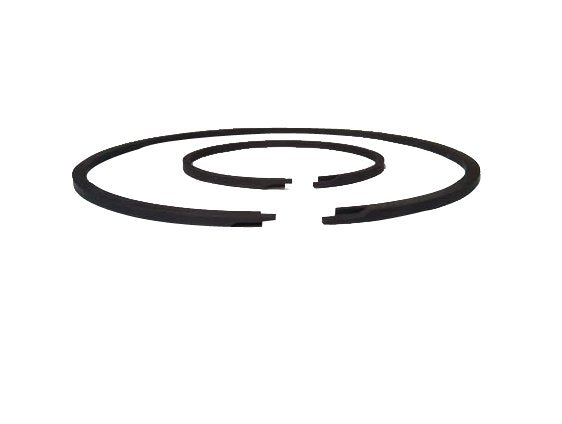

Saylor-Beall uses piston rings specifically designed for two-stage air compressors. They have a special taper and an overlapping joint to eliminate ring gap. This ensures less compressed air blow-by and reduces oil carry-over.
Quality Saves Money 0
Saylor-Beall has built cast iron, reciprocating air compressors since 1915. All products are made to provide many years of efficient, trouble free service. This commitment to quality reduces the overall cost of owning and operating a Saylor-Beall air compressor.
Service And Support 0
The Saylor-Beall name means you have bought more than just an air compressor; you have acquired the full support of an experienced air compressor company. Saylor-Beall stands behind every unit with a comprehensive warranty, as well as expert service and technical support. A network of active distributors throughout the U.S. and Canada assures convenient service and parts availability.
Specifications Approximately Shipping Weight
567 lb
Specifications Approximate Pump Shipping Weight
213 lb
Specifications Bolt Down Length
28 in
Specifications Bolt Down Width
19 in
Specifications Brand
Saylor-Beall
Specifications Delivered At 175 Psi Rating
11.1 ft³/min
Specifications Displaced At 175 Psi Rating
14.8 ft³/min
Specifications Flow Delivered At 100 Psi Rating
12.3 ft³/min
Specifications Flow Displaced At 100 Psi Rating
15.5 ft³/min
Specifications Height
47 in
Specifications Length
48 in
Specifications Motor Power
3 hp
Specifications Number Of Pump Cylinders
2
Specifications Pump Bolt Down Length
7-3/4 in
Specifications Pump Bolt Down Width
9 in
Specifications Pump Bore Diameter
2-1/8 in | 4-1/8 in
Specifications Pump Delivered At 175 Psi Rating
17.3 ft³/min
Specifications Pump Displaced At 175 Psi Rating
23.0 ft³/min
Specifications Pump Flow Delivered At 100 Psi Rating
19.3 ft³/min
Specifications Pump Flow Displaced At 100 Psi Rating
23.0 ft³/min
Specifications Pump Height
20-1/4 in
Specifications Pump Length
19-1/8 in
Specifications Pump Power
3 to 5 hp
Specifications Pump Speed At 100 Psi Rating
845 rpm
Specifications Pump Speed At 175 Psi Rating
845 rpm
Specifications Pump Stroke
3-1/2 in
Specifications Pump Width
11-5/8 in
Specifications Speed At 100 Psi Rating
575 rpm
Specifications Speed At 175 Psi Rating
540 rpm
Specifications Splash Lubricated Pump
705
Specifications Tank Capacity
60 gal
Specifications Width
21 in
