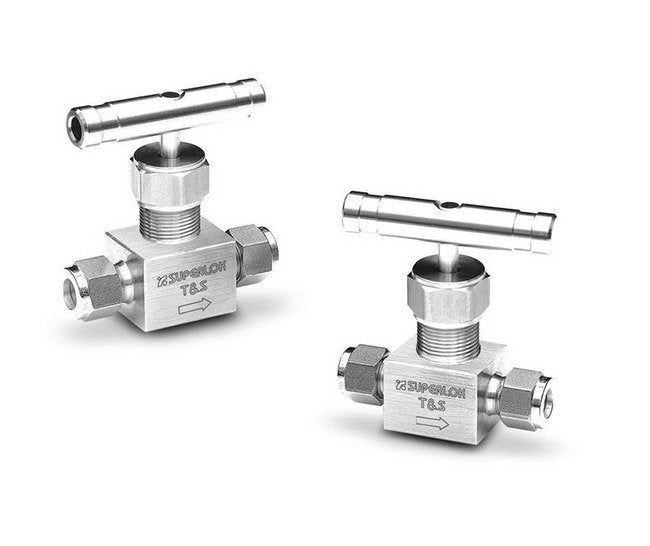

SBNV 3/8" MNPT Inlet & 1/2" Superlok Outlet Bar Stock Needle Valve
SBNV 3/8" MNPT Inlet & 1/2" Superlok Outlet Bar Stock Needle Valve
SKU:SBN-336022
Precision flow control valve with 3/8" MNPT Inlet, 1/2" Superlok Outlet, and high durability for industrial use.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
SBNV 3/8" MNPT Inlet & 1/2" Superlok Outlet Bar Stock Needle Valve
$99.99
Quantity: 1
Claim Your Seller Account
SBNV 3/8" MNPT Inlet & 1/2" Superlok Outlet Bar Stock Needle Valve
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBNV Series Integral Bonnet Bar Stock Needle Valve is designed for precision flow control in demanding industrial applications. With 3/8" MNPT Inlet and 1/2" Superlok Outlet End Connections, this valve boasts an orifice size of 0.25" (6.4 mm), a flow coefficient (Cv) of 0.73, and a pressure rating of 6000 psig. Made from high-quality materials like 316 Stainless Steel and Alloy 400, this valve ensures durability and reliability. Its compact design, low operating torques, and a variety of end connections make it versatile for different settings. Tested to stringent standards, this valve guarantees performance and quality.
Product Specifications
Features Features
Integral bonnet designBar stock bodyCompact designLow operating torquesVariety of End ConnectionsStraight and Angle flow patternsEach and every valve is tested at the factory
Handle Handle
Anodized Black Aluminum Bar Handle | Black Phenolic Knob Handle | Stainless Steel Bar Handle (Standard)
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Alloy 400 (Monel)

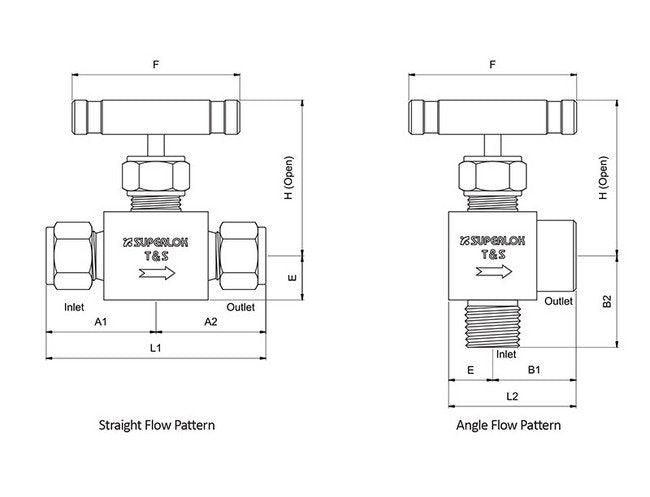

Technical Specs Dimension A1
31.8 mm
Technical Specs Dimension A2
41.9 mm
Technical Specs Dimension F
64.0 mm
Technical Specs Dimension H
63.0 mm
Technical Specs Dimension L1
73.7 mm
Technical Specs Flow Coefficients Cv
0.73
Technical Specs Inlet End Connections
3/8 in. Male National Pipe Thread (MNPT)
Technical Specs Orifice Size
0.25 in | 6.4 mm
Technical Specs Outlet End Connections
1/2 in. SUPERLOK®
Technical Specs Packing Material
Polyether Ether Ketone (PEEK) | Polytetrafluoroethylene (PTFE) (Standard)
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 38 De
413 bar | 6000 psig
Technical Specs Stem Type
Soft Seat Stem | Vee Stem (Standard)
Technical Specs Temperature Rating With Polyether Ether Ketone P
-65 to 600 ºF | -54 to 315 ºC
Technical Specs Temperature Rating With Polytetrafluoroethylene
-65 to 450 ºF | -54 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig (69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure. (Optional)
