SBNV Series 1/2" Integral Bonnet Needle Valve
SBNV Series 1/2" Integral Bonnet Needle Valve
SKU:SBN-54e00d
Reliable SBNV Series 1/2" Integral Bonnet Needle Valve for precise flow control and durability.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
SBNV Series 1/2" Integral Bonnet Needle Valve
$79.99
Quantity: 1
Claim Your Seller Account
SBNV Series 1/2" Integral Bonnet Needle Valve
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

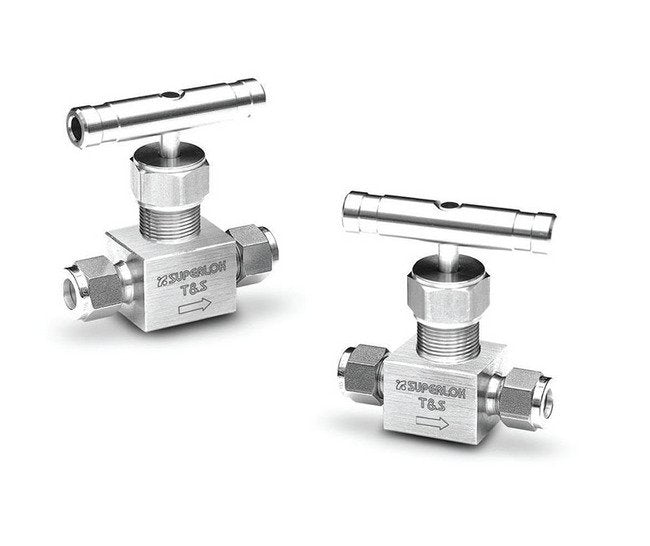

The SBNV Series 1/2" Integral Bonnet Needle Valve features a compact design with 1/2" MNPT inlet and 1/2" FNPT outlet connections. Constructed from 316 Stainless Steel, it offers a wide temperature and pressure range, making it ideal for various applications. Tested to rigorous standards, this valve ensures reliability and efficiency, meeting the demands of both consumer and institutional buyers.
Product Specifications
Features Features
Integral bonnet designBar stock bodyCompact designLow operating torquesVariety of End ConnectionsStraight and Angle flow patternsEach and every valve is tested at the factory
Handle Handle
Anodized Black Aluminum Bar Handle | Black Phenolic Knob Handle | Stainless Steel Bar Handle (Standard)
Note Note

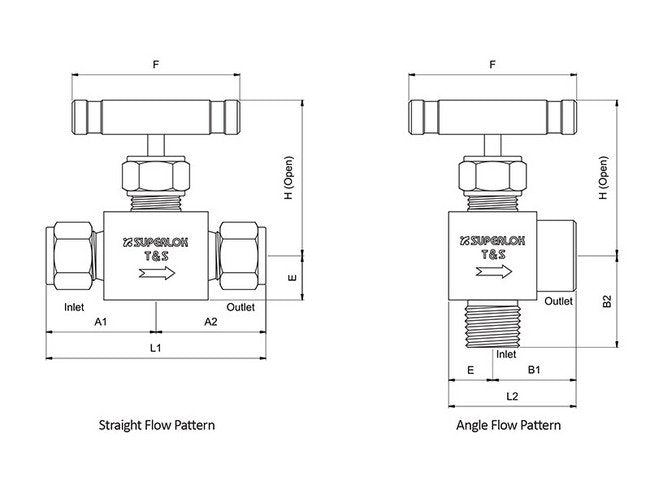

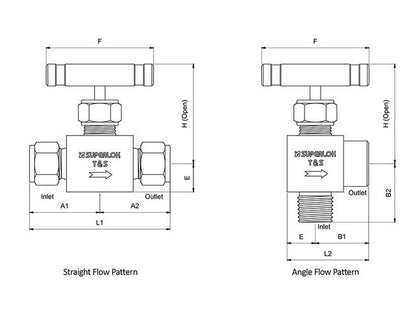

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Alloy 400 (Monel)
Technical Specs Dimension A1
32.5 mm
Technical Specs Dimension A2
32.0 mm
Technical Specs Dimension B1
31.8 mm
Technical Specs Dimension B2
35.8 mm
Technical Specs Dimension E
16.8 mm
Technical Specs Dimension F
64.0 mm
Technical Specs Dimension H
63.0 mm
Technical Specs Dimension L1
64.5 mm
Technical Specs Dimension L2
48.6 mm
Technical Specs Flow Coefficients Cv
0.73
Technical Specs Inlet End Connections
1/2 in. Male National Pipe Thread (MNPT)
Technical Specs Orifice Size
0.25 in | 6.4 mm
Technical Specs Outlet End Connections
1/2 in. Female National Pipe Thread (FNPT)
Technical Specs Packing Material
Polyether Ether Ketone (PEEK) | Polytetrafluoroethylene (PTFE) (Standard)
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 38 De
413 bar | 6000 psig
Technical Specs Stem Type
Soft Seat Stem | Vee Stem (Standard)
Technical Specs Temperature Rating With Polyether Ether Ketone P
-65 to 600 ºF | -54 to 315 ºC
Technical Specs Temperature Rating With Polytetrafluoroethylene
-65 to 450 ºF | -54 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig (69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure. (Optional)
