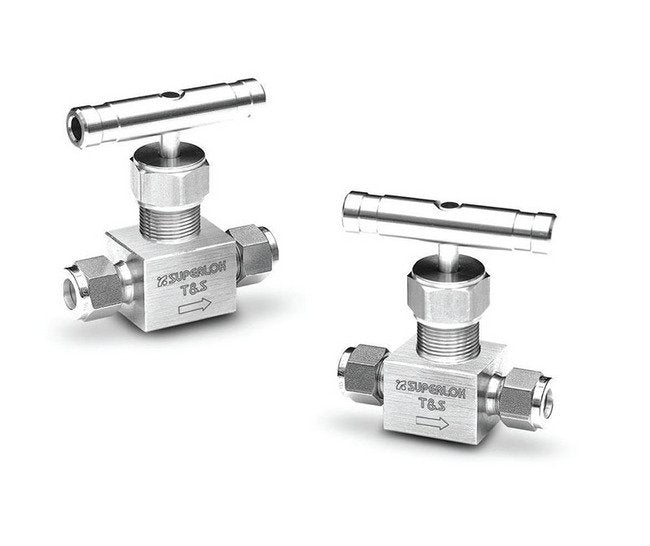

SBNV Series 1/4 Inch Integral Bonnet Needle Valve
SBNV Series 1/4 Inch Integral Bonnet Needle Valve
SKU:SBN-e49a68
Premium quality SBNV Series 1/4 Inch Valve for precise flow control in institutional environments.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SBNV Series 1/4 Inch Integral Bonnet Needle Valve
$89.99
Quantity: 1
Claim Your Seller Account
SBNV Series 1/4 Inch Integral Bonnet Needle Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBNV Series 1/4 Inch Integral Bonnet Needle Valve is expertly crafted with precise engineering, featuring 316 Stainless Steel or Alloy 400 body material. With a compact design and low operating torques, this valve ensures efficient flow control. It offers a range of stem types, packing materials, and handle options. Tested to meet rigorous standards, this valve is ideal for a variety of applications in institutional settings.
Product Specifications
Features Features
Integral bonnet designBar stock bodyCompact designLow operating torquesVariety of End ConnectionsStraight and Angle flow patternsEach and every valve is tested at the factory
Handle Handle
Anodized Black Aluminum Bar Handle | Black Phenolic Knob Handle | Stainless Steel Bar Handle (Standard)
Note Note

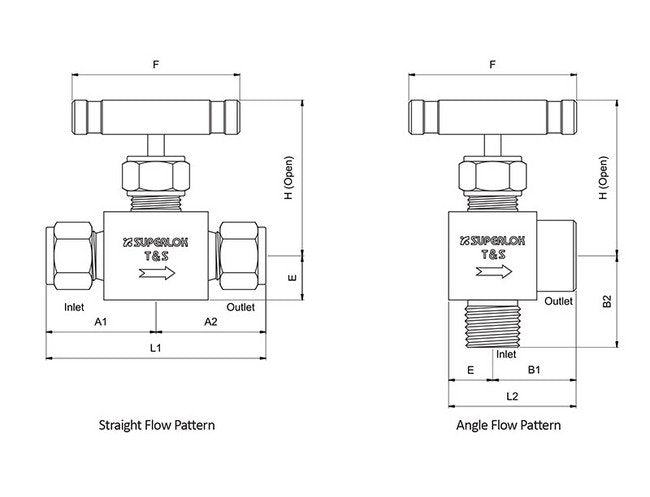

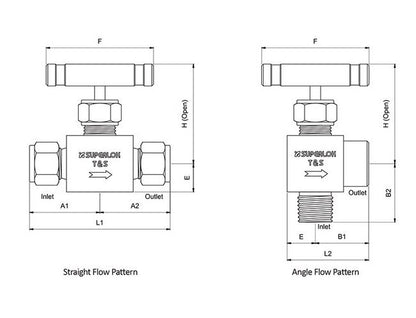

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Alloy 400 (Monel)
Technical Specs Dimension A1
23.8 mm
Technical Specs Dimension A2
23.8 mm
Technical Specs Dimension B1
25.4 mm
Technical Specs Dimension B2
25.4 mm
Technical Specs Dimension E
11.1 mm
Technical Specs Dimension F
45.0 mm
Technical Specs Dimension H
51.0 mm
Technical Specs Dimension L1
47.6 mm
Technical Specs Dimension L2
36.5 mm
Technical Specs Flow Coefficients Cv
0.37
Technical Specs Inlet End Connections
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Orifice Size
0.17 in | 4.3 mm
Technical Specs Outlet End Connections
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Packing Material
Polyether Ether Ketone (PEEK) | Polytetrafluoroethylene (PTFE) (Standard)
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 38 De
413 bar | 6000 psig
Technical Specs Stem Type
Soft Seat Stem | Vee Stem (Standard)
Technical Specs Temperature Rating With Polyether Ether Ketone P
-65 to 600 ºF | -54 to 315 ºC
Technical Specs Temperature Rating With Polytetrafluoroethylene
-65 to 450 ºF | -54 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig (69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure. (Optional)
