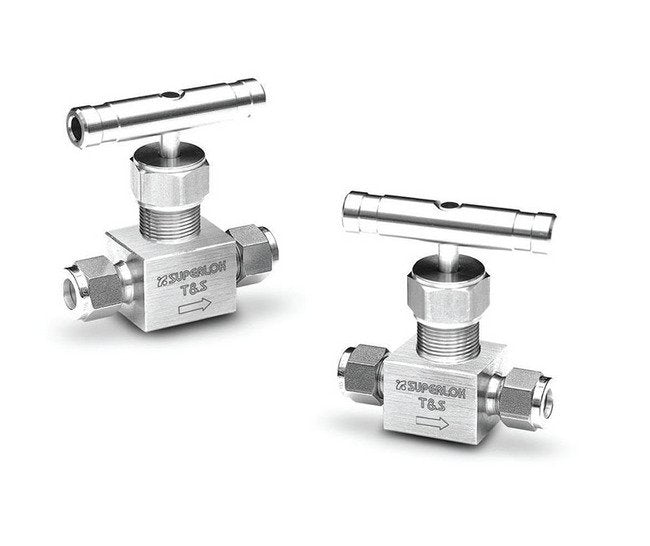

The SBNV Series 1/4 Inch Integral Bonnet Needle Valve is a precision-engineered valve designed for optimal flow control in industrial applications. Featuring 1/4 in. MNPT inlet end connections and 1/4 in. FNPT outlet end connections, this valve offers a compact design with low operating torques. Constructed with high-quality materials like 316 Stainless Steel and Alloy 400, this valve ensures longevity and reliability. Each valve is rigorously tested to meet stringent quality standards, providing assurance of performance and durability in demanding environments.
Product Specifications
Features Features
Integral bonnet designBar stock bodyCompact designLow operating torquesVariety of End ConnectionsStraight and Angle flow patternsEach and every valve is tested at the factory
Handle Handle
Anodized Black Aluminum Bar Handle | Black Phenolic Knob Handle | Stainless Steel Bar Handle (Standard)
Note Note

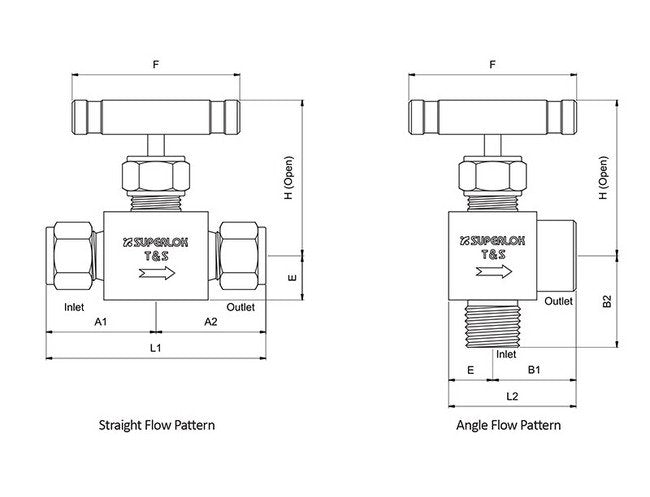

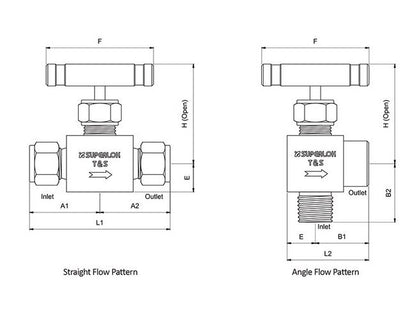

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Alloy 400 (Monel)
Technical Specs Dimension A1
24.6 mm
Technical Specs Dimension A2
23.8 mm
Technical Specs Dimension B1
25.4 mm
Technical Specs Dimension B2
26.2 mm
Technical Specs Dimension E
11.1 mm
Technical Specs Dimension F
45.0 mm
Technical Specs Dimension H
51.0 mm
Technical Specs Dimension L1
48.4 mm
Technical Specs Dimension L2
36.5 mm
Technical Specs Flow Coefficients Cv
0.37
Technical Specs Inlet End Connections
1/4 in. Male National Pipe Thread (MNPT)
Technical Specs Orifice Size
0.17 in | 4.3 mm
Technical Specs Outlet End Connections
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Packing Material
Polyether Ether Ketone (PEEK) | Polytetrafluoroethylene (PTFE) (Standard)
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 38 De
413 bar | 6000 psig
Technical Specs Stem Type
Soft Seat Stem | Vee Stem (Standard)
Technical Specs Temperature Rating With Polyether Ether Ketone P
-65 to 600 ºF | -54 to 315 ºC
Technical Specs Temperature Rating With Polytetrafluoroethylene
-65 to 450 ºF | -54 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig (69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure. (Optional)
