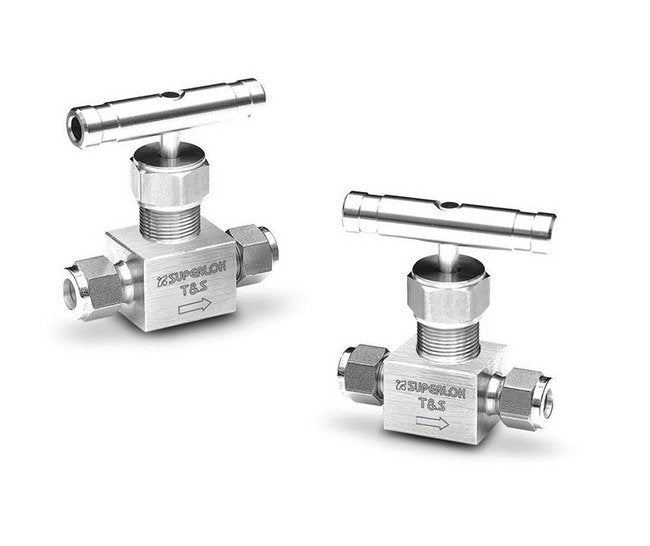

SBNV Series Integral Bonnet Bar Stock Needle Valve
SBNV Series Integral Bonnet Bar Stock Needle Valve
SKU:SBN-c8340d
Precision-engineered SBNV Series Needle Valve for high-pressure fluid control. Ideal for critical applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SBNV Series Integral Bonnet Bar Stock Needle Valve
$89.99
Quantity: 1
Claim Your Seller Account
SBNV Series Integral Bonnet Bar Stock Needle Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBNV Series 3/4 Inch MNPT Inlet and 1/2 Inch FNPT Outlet Integral Bonnet Bar Stock Needle Valve is engineered for precision control in fluid systems. With an orifice size of 0.25 inches, 316 Stainless Steel body, and soft seat stem, it ensures reliable performance under high pressure (413 bar). Tested to meet stringent quality standards, this valve offers low operating torques, a compact design, and versatile end connections. From Federal procurement to industry-specific certifications, this valve complies with a range of institutional standards, making it a trusted choice for critical applications.
Product Specifications
Features Features
Integral bonnet designBar stock bodyCompact designLow operating torquesVariety of End ConnectionsStraight and Angle flow patternsEach and every valve is tested at the factory
Handle Handle
Anodized Black Aluminum Bar Handle | Black Phenolic Knob Handle | Stainless Steel Bar Handle (Standard)
Note Note

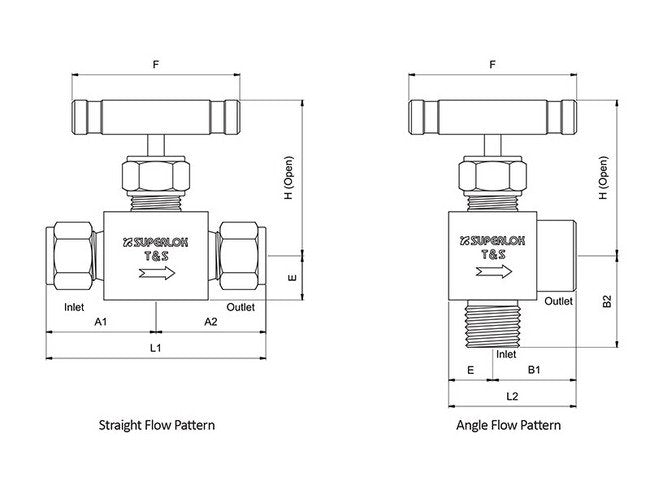

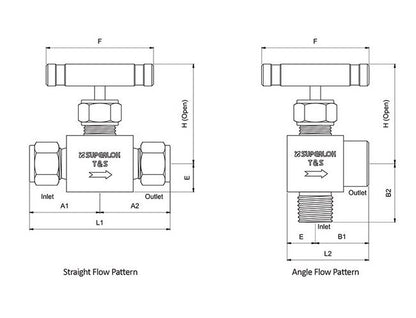

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Alloy 400 (Monel)
Technical Specs Dimension A1
31.8 mm
Technical Specs Dimension A2
32.0 mm
Technical Specs Dimension F
64.0 mm
Technical Specs Dimension H
63.0 mm
Technical Specs Dimension L1
63.8 mm
Technical Specs Flow Coefficients Cv
0.73
Technical Specs Inlet End Connections
3/4 in. Male National Pipe Thread (MNPT)
Technical Specs Orifice Size
0.25 in | 6.4 mm
Technical Specs Outlet End Connections
1/2 in. Female National Pipe Thread (FNPT)
Technical Specs Packing Material
Polyether Ether Ketone (PEEK) | Polytetrafluoroethylene (PTFE) (Standard)
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 38 De
413 bar | 6000 psig
Technical Specs Stem Type
Soft Seat Stem | Vee Stem (Standard)
Technical Specs Temperature Rating With Polyether Ether Ketone P
-65 to 600 ºF | -54 to 315 ºC
Technical Specs Temperature Rating With Polytetrafluoroethylene
-65 to 450 ºF | -54 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig (69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure. (Optional)
