SBNV Series Needle Valve, 1/4 MNPT Inlet, Integral Bonnet
SBNV Series Needle Valve, 1/4 MNPT Inlet, Integral Bonnet
SKU:SBN-289d28
Precision flow control with SBNV Series Needle Valve, featuring compact design, integral bonnet, and durable construction for industrial use.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SBNV Series Needle Valve, 1/4 MNPT Inlet, Integral Bonnet
$89.99
Quantity: 1
Claim Your Seller Account
SBNV Series Needle Valve, 1/4 MNPT Inlet, Integral Bonnet
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

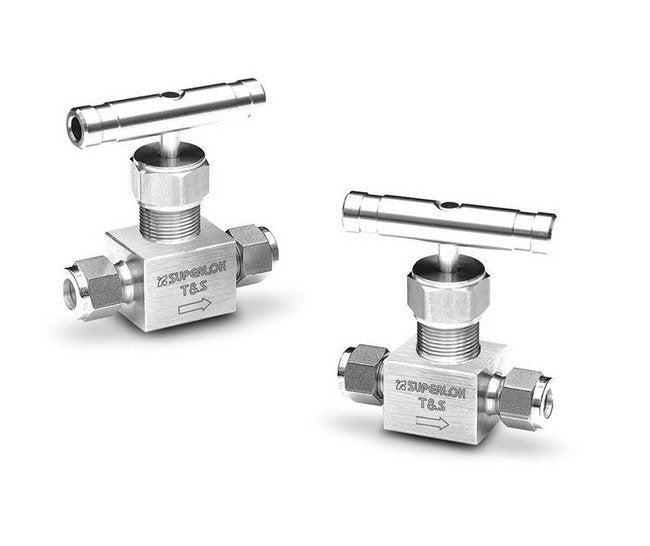

The SBNV Series Integral Bonnet Bar Stock Needle Valve is designed for precision flow control in demanding industrial environments. With a compact design, low operating torques, and a variety of end connections, this valve offers reliable performance. Its integral bonnet design and bar stock body ensure durability and stability. Tested to rigorous standards, it provides consistent and leak-free operation. Made from high-quality materials like 316 Stainless Steel and Alloy 400, this valve is suitable for a wide range of applications. Temperature and pressure ratings make it versatile and compliant with industry regulations.
Product Specifications
Features Features
Integral bonnet designBar stock bodyCompact designLow operating torquesVariety of End ConnectionsStraight and Angle flow patternsEach and every valve is tested at the factory
Handle Handle
Anodized Black Aluminum Bar Handle | Black Phenolic Knob Handle | Stainless Steel Bar Handle (Standard)
Note Note

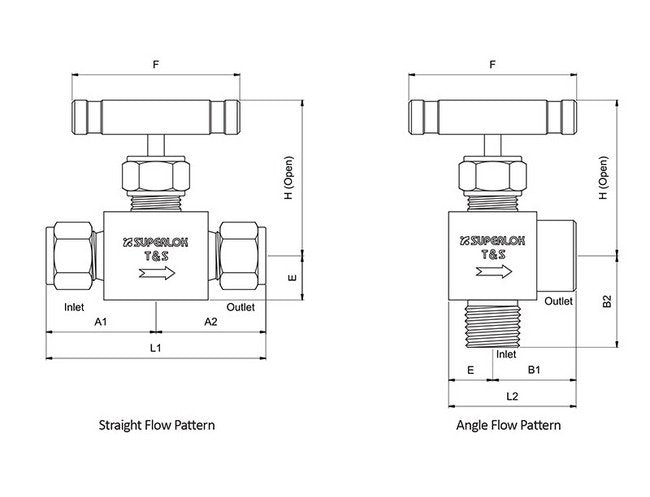

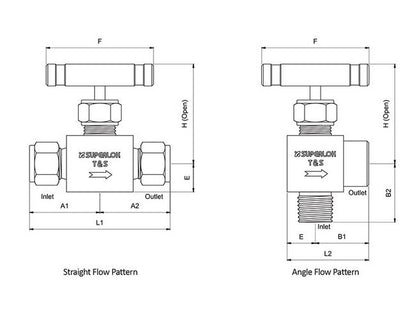

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Alloy 400 (Monel)
Technical Specs Dimension A1
24.6 mm
Technical Specs Dimension A2
24.6 mm
Technical Specs Dimension F
45.0 mm
Technical Specs Dimension H
51.0 mm
Technical Specs Dimension L1
49.2 mm
Technical Specs Flow Coefficients Cv
0.37
Technical Specs Inlet End Connections
1/4 in. Male National Pipe Thread (MNPT)
Technical Specs Orifice Size
0.17 in | 4.3 mm
Technical Specs Outlet End Connections
1/4 in. Male National Pipe Thread (MNPT)
Technical Specs Packing Material
Polyether Ether Ketone (PEEK) | Polytetrafluoroethylene (PTFE) (Standard)
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 38 De
413 bar | 6000 psig
Technical Specs Stem Type
Soft Seat Stem | Vee Stem (Standard)
Technical Specs Temperature Rating With Polyether Ether Ketone P
-65 to 600 ºF | -54 to 315 ºC
Technical Specs Temperature Rating With Polytetrafluoroethylene
-65 to 450 ºF | -54 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig (69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure. (Optional)
