The SBNV Series Integral Bonnet Bar Stock Needle Valve features precise control with an orifice size of 0.25 inches, ideal for various flow coefficients. Constructed with 316 Stainless Steel and Alloy 400, this valve ensures durability and reliability. With temperature ratings ranging from -65 to 600°F, and pressure rating up to 6000 psig, it meets stringent industry standards. The compact design, low operating torques, and variety of end connections make it suitable for diverse applications, backed by rigorous factory testing for leak prevention.
Product Specifications
Features Features
Integral bonnet designBar stock bodyCompact designLow operating torquesVariety of End ConnectionsStraight and Angle flow patternsEach and every valve is tested at the factory
Handle Handle
Anodized Black Aluminum Bar Handle | Black Phenolic Knob Handle | Stainless Steel Bar Handle (Standard)
Note Note

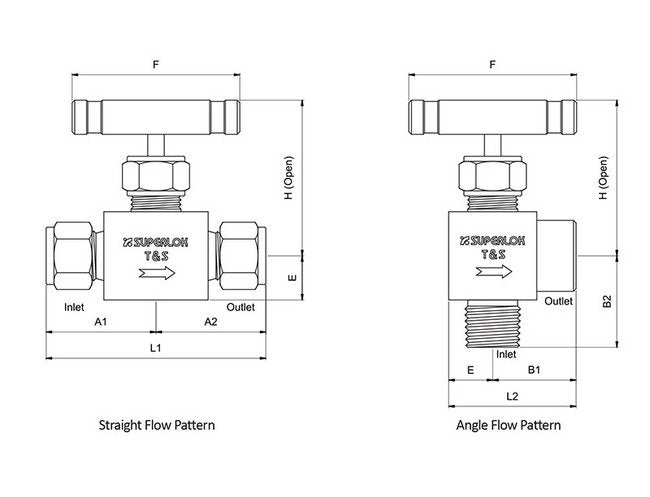

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Alloy 400 (Monel)
Technical Specs Dimension A1
32.0 mm
Technical Specs Dimension A2
32.0 mm
Technical Specs Dimension B1
31.8 mm
Technical Specs Dimension B2
35.8 mm
Technical Specs Dimension E
16.8 mm
Technical Specs Dimension F
64.0 mm
Technical Specs Dimension H
63.0 mm
Technical Specs Dimension L1
64.0 mm
Technical Specs Dimension L2
48.6 mm
Technical Specs Flow Coefficients Cv
0.73
Technical Specs Inlet End Connections
1/2 in. Female National Pipe Thread (FNPT)
Technical Specs Orifice Size
0.25 in | 6.4 mm
Technical Specs Outlet End Connections
1/4 in. SUPERLOK®
Technical Specs Packing Material
Polyether Ether Ketone (PEEK) | Polytetrafluoroethylene (PTFE) (Standard)
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 38 De
413 bar | 6000 psig
Technical Specs Stem Type
Soft Seat Stem | Vee Stem (Standard)
Technical Specs Temperature Rating With Polyether Ether Ketone P
-65 to 600 ºF | -54 to 315 ºC
Technical Specs Temperature Rating With Polytetrafluoroethylene
-65 to 450 ºF | -54 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig (69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure. (Optional)
