The SBT Series 3.8mm Orifice Three-Way Trunnion Ball Valve is a high-pressure solution that ensures reliable shut-off or switching functions. With PEEK trunnion bearings for extended cycle life and blow-out resistant ball/stem design, this valve offers longevity and safety. Its compact, panel-mountable, and factory-tested features make it ideal for extreme applications. Operating at pressures up to 10,000 psig, this valve is durable, low torque, and designed for optimal flow.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note

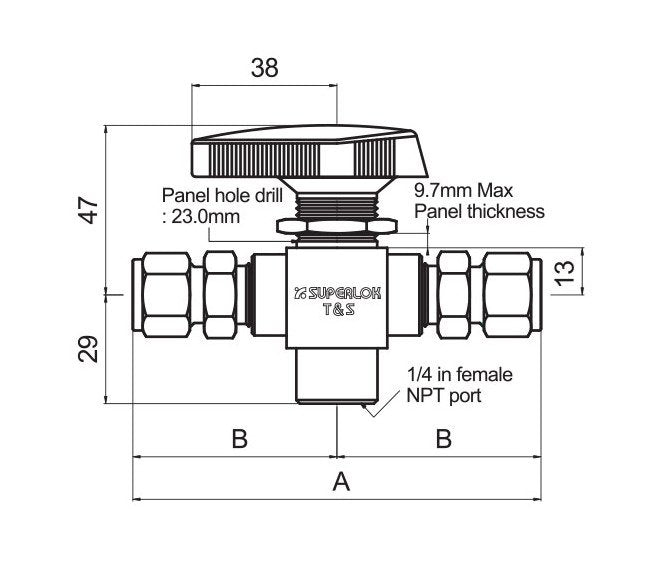

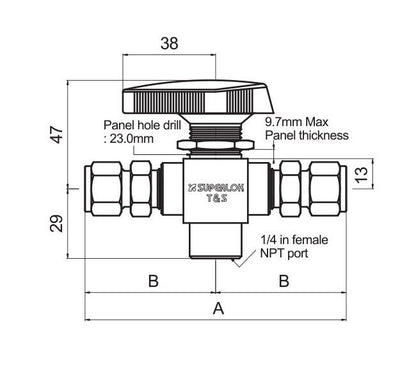

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Three-Way Valve
Technical Specs Body Material
Stainless Steel
Technical Specs Dimension A
117 mm
Technical Specs Dimension B
58.4 mm
Technical Specs Flow Coefficients Cv
0.75
Technical Specs Inlet End Connections
1/2 in. SUPERLOK®
Technical Specs Orifice Size
3.8 mm
Technical Specs Outlet End Connections
1/2 in. SUPERLOK®
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
