SBT Series 3.8mm Orifice Three-Way Trunnion Ball Valve
SBT Series 3.8mm Orifice Three-Way Trunnion Ball Valve
SKU:SBT-262b60
Reliable high-pressure 3.8mm orifice ball valve with SUPERLOK® connections for seamless shut-off. PEEK trunnion bearings ensure durable performance.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
SBT Series 3.8mm Orifice Three-Way Trunnion Ball Valve
$399.99
Quantity: 1
Claim Your Seller Account
SBT Series 3.8mm Orifice Three-Way Trunnion Ball Valve
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBT Series 3.8mm Orifice Three-Way Trunnion Ball Valve, featuring SUPERLOK® Inlet End Connections, is designed for high-pressure applications up to 10,000 psig. With PEEK trunnion bearings for extended cycle life and low operating torque, this valve ensures reliable shut-off and switching operations. The compact design, blow-out resistant ball/stem, and panel mountable feature make it ideal for demanding industrial environments.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note

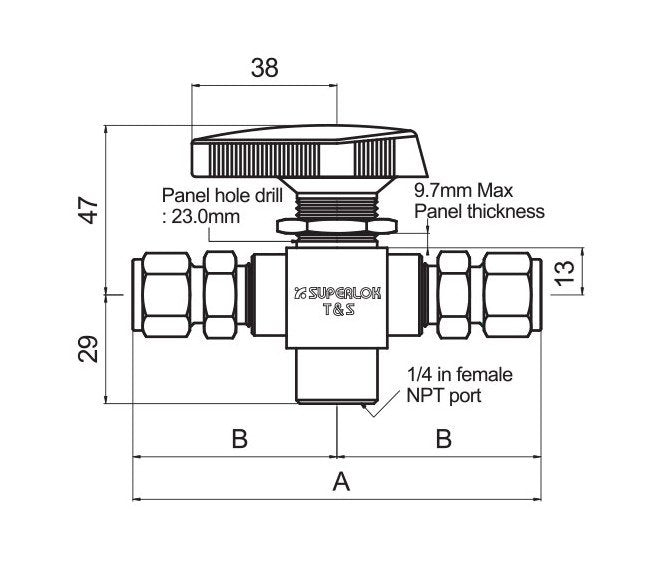

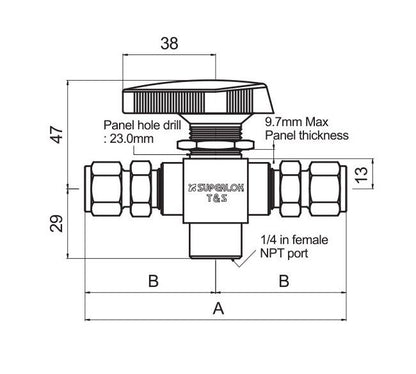

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Three-Way Valve
Technical Specs Body Material
Stainless Steel
Technical Specs Dimension A
105 mm
Technical Specs Dimension B
52.6 mm
Technical Specs Flow Coefficients Cv
0.75
Technical Specs Inlet End Connections
6 mm Superlok®
Technical Specs Orifice Size
3.8 mm
Technical Specs Outlet End Connections
6 mm Superlok®
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
