SBT Series 3.8mm Orifice Three-Way Trunnion Ball Valve

SBT Series 3.8mm Orifice Three-Way Trunnion Ball Valve

SKU:SBT-d6600e

Reliable high-pressure shut-off valve with PEEK trunnion bearings and compact design for enhanced durability.

Regular price $299.99
Regular price Sale price $299.99
Sale

Initiate Order

SBT Series 3.8mm Orifice Three-Way Trunnion Ball Valve

SBT Series 3.8mm Orifice Three-Way Trunnion Ball Valve

$299.99

Quantity: 1

Claim Your Seller Account

SBT Series 3.8mm Orifice Three-Way Trunnion Ball Valve

SBT Series 3.8mm Orifice Three-Way Trunnion Ball Valve

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SBT Series 3.8mm Orifice Three-Way Trunnion Ball Valve, featuring SUPERLOK® Inlet End Connections, is designed for high-pressure applications up to 10,000 psig. With PCTFE Seats, Stainless Steel Body, and PEEK trunnion bearings, this valve ensures reliable shut-off, low operating torques, and extended cycle life. Its compact, rugged design with blow-out resistant ball/stem and spring-loaded seats make it ideal for critical industrial settings.

Product Specifications

Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Three-Way Valve
Technical Specs Body Material
Stainless Steel

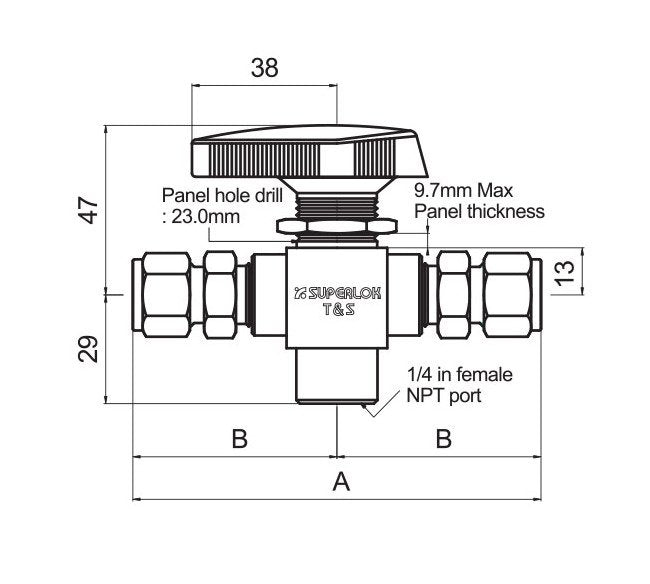

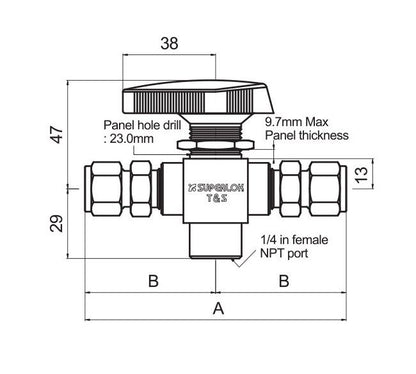

Technical Specs Dimension A
112 mm
Technical Specs Dimension B
55.9 mm
Technical Specs Flow Coefficients Cv
0.75
Technical Specs Inlet End Connections
10 mm Superlok®
Technical Specs Orifice Size
3.8 mm
Technical Specs Outlet End Connections
10 mm Superlok®
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
