The SBT Series 3.8mm Three-Way Trunnion Ball Valve by SUPERLOK® is a high-pressure valve designed for reliable shut-off operations in extreme conditions. Featuring PEEK trunnion bearings for extended durability, this compact valve offers a pressure rating of 6000 psi and a temperature range of 0 to 450 °F. Its spring-loaded seats ensure low operating torque and a long cycle life, making it ideal for institutional and government applications requiring precision and longevity.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note

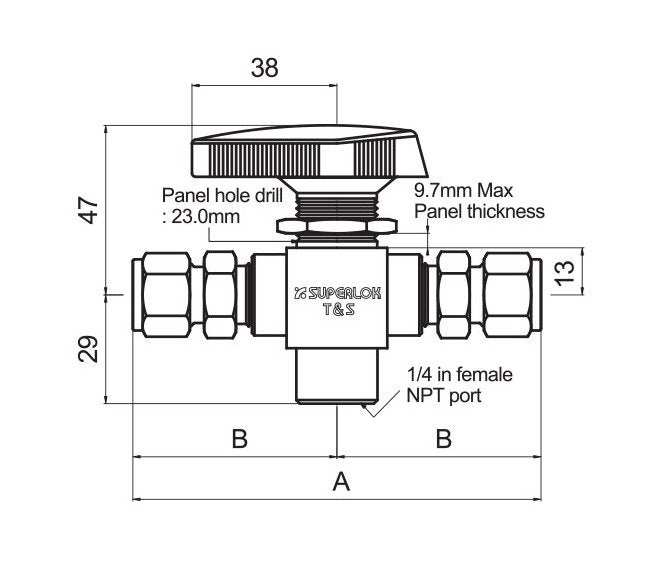

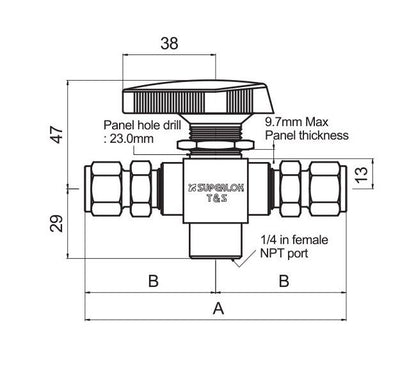

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Three-Way Valve
Technical Specs Body Material
Stainless Steel
Technical Specs Dimension A
112 mm
Technical Specs Dimension B
55.6 mm
Technical Specs Flow Coefficients Cv
0.75
Technical Specs Inlet End Connections
3/8 in. SUPERLOK®
Technical Specs Orifice Size
3.8 mm
Technical Specs Outlet End Connections
3/8 in. SUPERLOK®
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
