SBT Series 4.8mm Orifice Trunnion Ball Valve with SUPERLOK® Connections

SBT Series 4.8mm Orifice Trunnion Ball Valve with SUPERLOK® Connections

SBT-1653a6

Reliable high-pressure ball valve with compact design for extreme applications.

$299.99
$299.99
Sale

Initiate Order

SBT Series 4.8mm Orifice Trunnion Ball Valve with SUPERLOK® Connections

SBT Series 4.8mm Orifice Trunnion Ball Valve with SUPERLOK® Connections

$299.99

Quantity: 1

Claim Your Seller Account

SBT Series 4.8mm Orifice Trunnion Ball Valve with SUPERLOK® Connections

SBT Series 4.8mm Orifice Trunnion Ball Valve with SUPERLOK® Connections

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SBT Series 4.8mm Orifice Trunnion Ball Valve with 8mm SUPERLOK® Inlet End Connections is designed for reliable shut-off and switching functions in high-pressure applications. With PCTFE seats, stainless steel body, and PEEK trunnion bearings, this valve offers enhanced resistance against seizure and longevity in extreme conditions. Its compact design, low operating torque, and panel mountable feature make it a top choice for industries demanding precision and durability.

Product Specifications

Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Two-Way Valve
Technical Specs Body Material
Stainless Steel

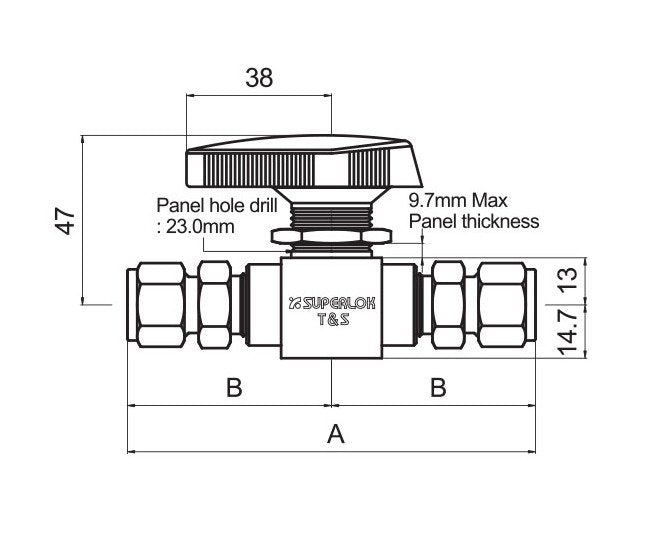

Technical Specs Dimension A
105 mm
Technical Specs Dimension B
52.6 mm
Technical Specs Flow Coefficients Cv
1.5
Technical Specs Inlet End Connections
8 mm Superlok®
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
8 mm Superlok®
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
