The SBT Series Trunnion Ball Valve with 4.8mm orifice and 12mm SUPERLOK® Inlet End Connections is a robust solution for high-pressure applications up to 10,000 psig. Featuring PEEK trunnion bearings for extended cycle life, this valve offers blow-out resistance, low torque operation, and panel mountable design. With stainless steel construction and spring-loaded seats, it ensures reliable shut-off and durability in extreme conditions.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note

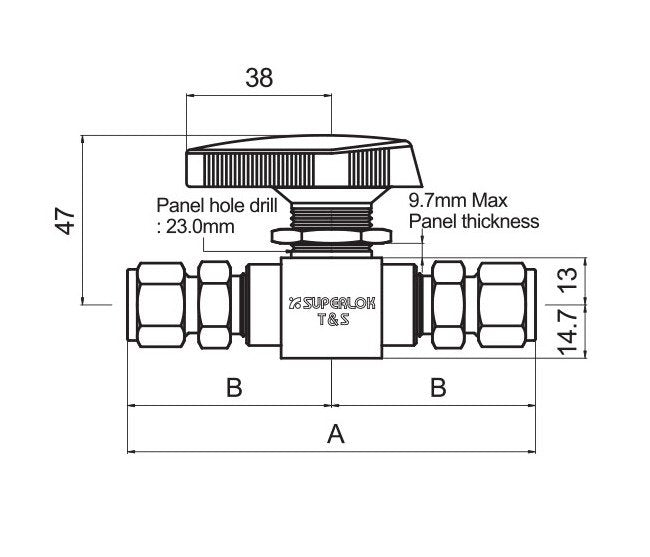

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Two-Way Valve
Technical Specs Body Material
Stainless Steel
Technical Specs Dimension A
117 mm
Technical Specs Dimension B
58.4 mm
Technical Specs Flow Coefficients Cv
1.0
Technical Specs Inlet End Connections
12 mm Superlok®
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
12 mm Superlok®
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
