SBT Series 4.8mm Orifice Two-Way Trunnion Ball Valve with SUPERLOK® Inlet End Connections
SBT Series 4.8mm Orifice Two-Way Trunnion Ball Valve with SUPERLOK® Inlet End Connections
SKU:SBT-09f982
Reliable high-pressure ball valve with PEEK trunnion bearings and low operating torque, ideal for extreme applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
SBT Series 4.8mm Orifice Two-Way Trunnion Ball Valve with SUPERLOK® Inlet End Connections
$249.99
Quantity: 1
Claim Your Seller Account
SBT Series 4.8mm Orifice Two-Way Trunnion Ball Valve with SUPERLOK® Inlet End Connections
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBT Series 4.8mm Orifice Two-Way Trunnion Ball Valve with SUPERLOK® Inlet End Connections is designed for high-pressure applications, featuring PEEK trunnion bearings for extended cycle life and spring-loaded seats for low torques. With a pressure rating of 6000 psi and a temperature range of 0 to 450°F, this valve ensures reliable shut-off and switching functions. Its compact design, blow-out resistant ball/stem, and positive handle stops make it ideal for extreme conditions, meeting stringent procurement requirements.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note

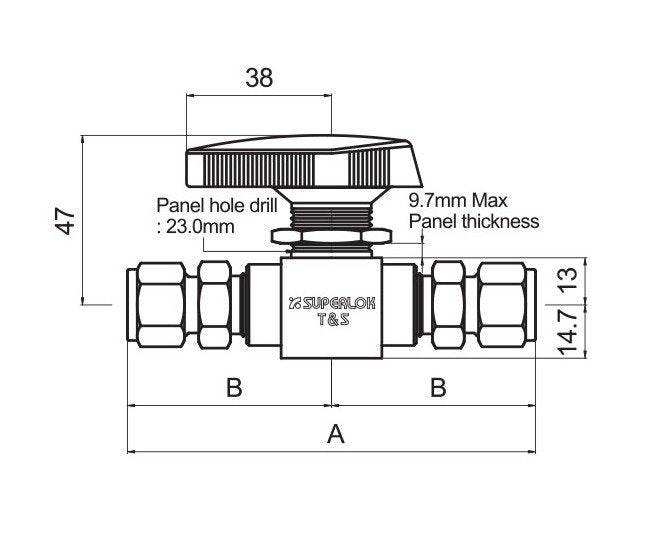

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Two-Way Valve
Technical Specs Body Material
Stainless Steel
Technical Specs Dimension A
105 mm
Technical Specs Dimension B
52.6 mm
Technical Specs Flow Coefficients Cv
1.6
Technical Specs Inlet End Connections
6 mm Superlok®
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
6 mm Superlok®
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
