SBT Series 4.8mm Trunnion Ball Valve
SBT Series 4.8mm Trunnion Ball Valve
SKU:SBT-d64398
High-pressure 4.8mm Trunnion Ball Valve for reliable shut-off functions, engineered for extreme applications with PEEK trunnion bearings and low torque operation.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
SBT Series 4.8mm Trunnion Ball Valve
$299.99
Quantity: 1
Claim Your Seller Account
SBT Series 4.8mm Trunnion Ball Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBT Series 4.8mm Orifice and 1/4" FNPT Two-Way Trunnion Ball Valve from SUPERLOK® is engineered for high-pressure operations up to 6000 psi. Featuring PEEK trunnion bearings, this valve ensures extended cycle life and low torque operation. With a compact design and blow-out resistant ball/stem, it meets the demands of extreme applications while providing reliable shut-off functions.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note

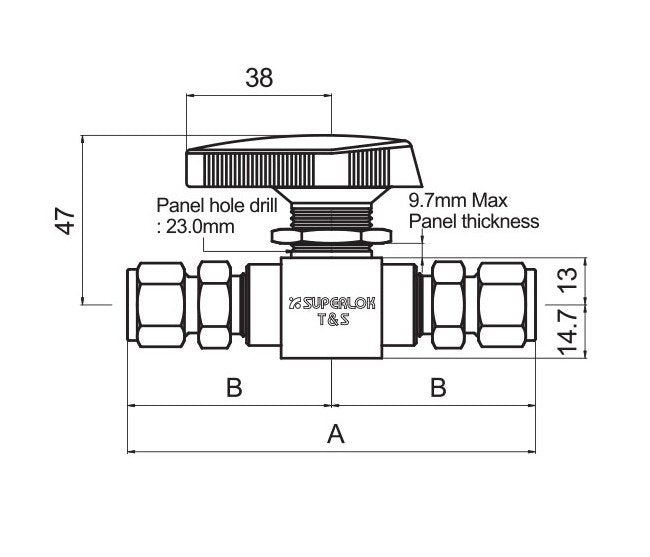

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Two-Way Valve
Technical Specs Body Material
Stainless Steel
Technical Specs Dimension A
74.7 mm
Technical Specs Dimension B
37.3 mm
Technical Specs Flow Coefficients Cv
1.0
Technical Specs Inlet End Connections
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
