SBT Series 4.8mm Trunnion Ball Valve with 1/4in SUPERLOK® Connections
SBT Series 4.8mm Trunnion Ball Valve with 1/4in SUPERLOK® Connections
SKU:SBT-106379
SBT Series 4.8mm Trunnion Ball Valve with SUPERLOK® Connections - High-pressure, durable, and reliable for critical applications.
Regular price
$239.99
Regular price
Sale price
$239.99
Unit price
per
Initiate Order
SBT Series 4.8mm Trunnion Ball Valve with 1/4in SUPERLOK® Connections
$239.99
Quantity: 1
Claim Your Seller Account
SBT Series 4.8mm Trunnion Ball Valve with 1/4in SUPERLOK® Connections
$239.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBT Series Trunnion Ball Valve with 4.8mm orifice and 1/4in SUPERLOK® inlet end connections is a high-pressure solution designed for reliable shut-off and switching functions. Featuring PEEK trunnion bearings for extended cycle life, this valve excels in extreme applications with a pressure rating of 6000 psi. Its compact design, low operating torque, and blow-out resistant ball/stem make it ideal for institutional usage where durability and performance are critical.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note

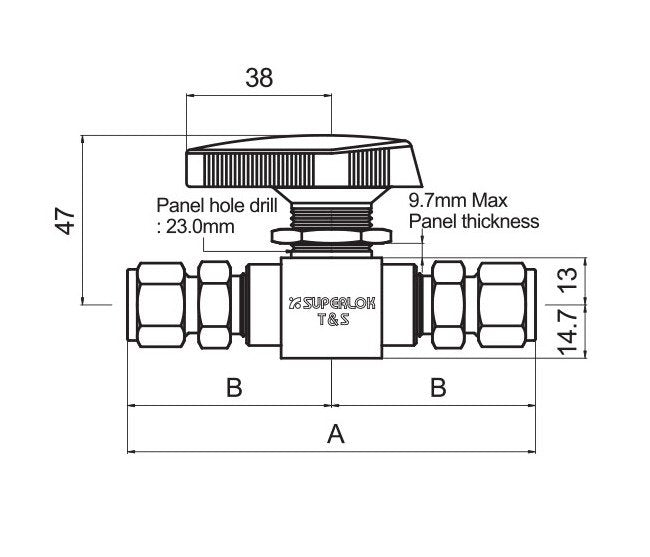

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Two-Way Valve
Technical Specs Body Material
Stainless Steel
Technical Specs Dimension A
105 mm
Technical Specs Dimension B
52.6 mm
Technical Specs Flow Coefficients Cv
1.6
Technical Specs Inlet End Connections
1/4 in. SUPERLOK®
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
1/4 in. SUPERLOK®
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
