The SBTH Series 3.8mm Orifice Size Three-Way Trunnion Ball Valve, featuring SUPERLOK® Inlet End Connections, is engineered for reliable shut-off and switching functions. Enhanced with PEEK trunnion bearings for extended cycle life, this valve offers low operating torques at pressures up to 6000 psi. With a compact design and blow-out resistant two-piece ball/stem, it ensures durability and high performance in extreme applications. Panel mountable and 100% factory tested, this valve is a hallmark of quality and efficiency.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note

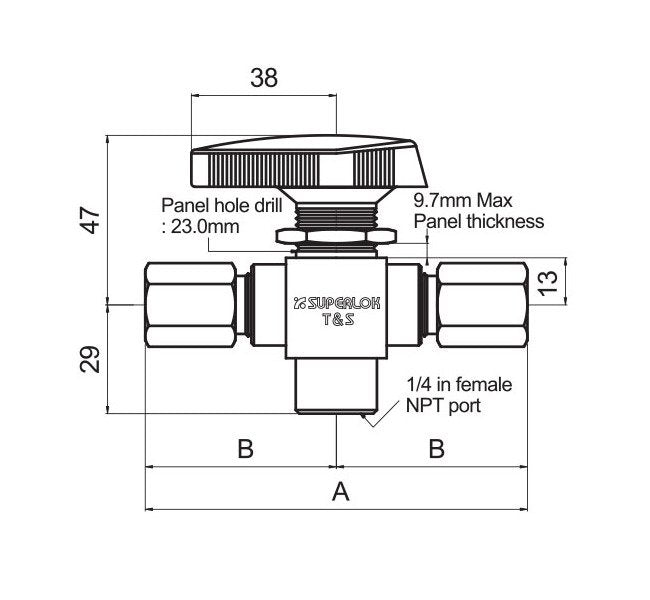

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Three-Way Valve
Technical Specs Body Material
Stainless Steel
Technical Specs Dimension A
105 mm
Technical Specs Dimension B
52.6 mm
Technical Specs Flow Coefficients Cv
0.75
Technical Specs Inlet End Connections
8 mm Superlok®
Technical Specs Orifice Size
3.8 mm
Technical Specs Outlet End Connections
8 mm Superlok®
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
