SBTH Series 3.8mm Orifice Three-Way Trunnion Ball Valve
SBTH Series 3.8mm Orifice Three-Way Trunnion Ball Valve
SKU:SBT-a6985d
Reliable high pressure 3.8mm three-way ball valve with PCTFE seats and compact design.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
SBTH Series 3.8mm Orifice Three-Way Trunnion Ball Valve
$189.99
Quantity: 1
Claim Your Seller Account
SBTH Series 3.8mm Orifice Three-Way Trunnion Ball Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBTH Series 3.8mm Orifice Three-Way Trunnion Ball Valve from SUPERLOK® is engineered for high pressure applications up to 10,000 psig. With PCTFE seats, stainless steel body, and compact design with spring-loaded seats, it ensures reliable shut-off and switching functions. Featuring PEEK trunnion bearings for extended cycle life, blow-out resistant ball/stem, low torque operation, and panel mountable design, this valve combines durability and performance for extreme conditions.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note

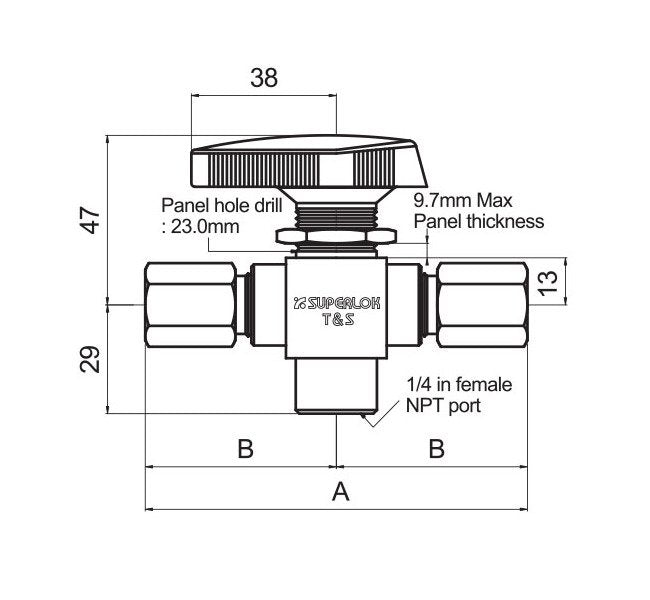

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Three-Way Valve
Technical Specs Body Material
Stainless Steel
Technical Specs Dimension A
117 mm
Technical Specs Dimension B
58.4 mm
Technical Specs Flow Coefficients Cv
0.75
Technical Specs Inlet End Connections
1/2 in. SUPERLOK®
Technical Specs Orifice Size
3.8 mm
Technical Specs Outlet End Connections
1/2 in. SUPERLOK®
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
