SBTH Series 3.8mm Trunnion Ball Valve
SBTH Series 3.8mm Trunnion Ball Valve
SKU:SBT-192a8d
Reliable high-pressure trunnion ball valve with PEEK bearings for extended cycle life and low torque operation. Ideal for extreme applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
SBTH Series 3.8mm Trunnion Ball Valve
$189.99
Quantity: 1
Claim Your Seller Account
SBTH Series 3.8mm Trunnion Ball Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBTH Series 3.8mm Trunnion Ball Valve from SUPERLOK® is engineered for reliable shut-off and switching functions in high-pressure applications. Enhanced with PEEK trunnion bearings for extended cycle life, this valve features a compact design with spring-loaded seats for low operating torques. With a pressure rating of 6000 psi and temperature range of 0 to 450 °F, it meets stringent industry standards for durability and performance.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note

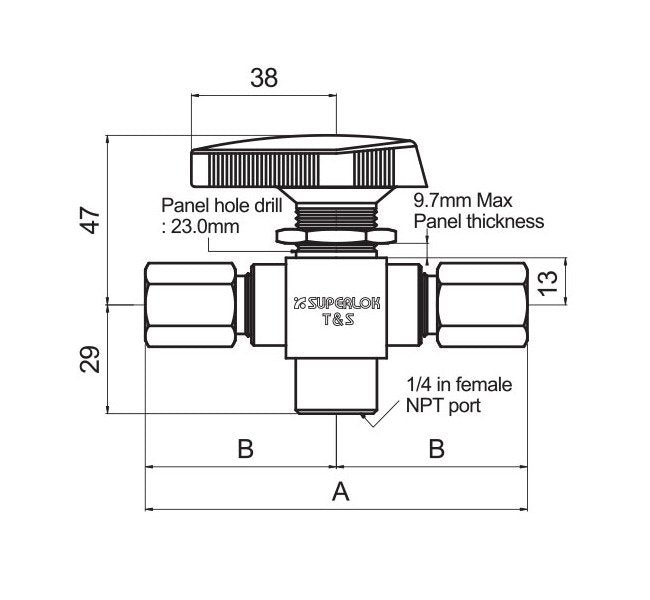

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Three-Way Valve
Technical Specs Body Material
Stainless Steel
Technical Specs Dimension A
112 mm
Technical Specs Dimension B
55.9 mm
Technical Specs Flow Coefficients Cv
0.75
Technical Specs Inlet End Connections
10 mm Superlok®
Technical Specs Orifice Size
3.8 mm
Technical Specs Outlet End Connections
10 mm Superlok®
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
