SBTH Series 3.8mm Trunnion Ball Valve
SBTH Series 3.8mm Trunnion Ball Valve
SKU:SBT-3d2a3f
Reliable SBTH Series 3.8mm Trunnion Ball Valve for high-pressure applications with PEEK bearings & blow-out resistance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
SBTH Series 3.8mm Trunnion Ball Valve
$299.99
Quantity: 1
Claim Your Seller Account
SBTH Series 3.8mm Trunnion Ball Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled reliability with the SBTH Series 3.8mm Trunnion Ball Valve. Engineered with PEEK trunnion bearings for extended cycle life, blow-out resistant design, and low torque operation, this valve ensures optimal performance in high-pressure applications. With a pressure rating of 6000 psi, temperature range of 0 to 450°F, and stainless steel body, it excels in demanding environments. The compact, panel-mountable design with superior flow coefficients and factory testing further enhances its industry-leading capabilities.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note

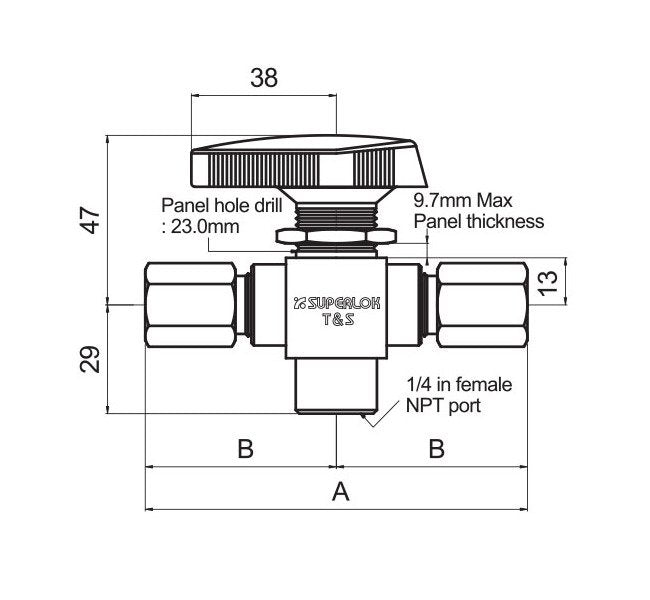

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Three-Way Valve
Technical Specs Body Material
Stainless Steel
Technical Specs Dimension A
74.7 mm
Technical Specs Dimension B
37.3 mm
Technical Specs Flow Coefficients Cv
0.75
Technical Specs Inlet End Connections
1/8 in. Female National Pipe Thread (FNPT)
Technical Specs Orifice Size
3.8 mm
Technical Specs Outlet End Connections
1/8 in. Female National Pipe Thread (FNPT)
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
