SBTH Series 4.8mm Trunnion Ball Valve
SBTH Series 4.8mm Trunnion Ball Valve
SKU:SBT-799f18
High-pressure 4.8mm Trunnion Ball Valve with PEEK bearings for reliable shut-off and low torque operation in industrial settings.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SBTH Series 4.8mm Trunnion Ball Valve
$129.99
Quantity: 1
Claim Your Seller Account
SBTH Series 4.8mm Trunnion Ball Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBTH Series 4.8mm Trunnion Ball Valve from SUPERLOK® is engineered for high-pressure applications up to 6000 psi. Featuring PEEK trunnion bearings for extended cycle life, this stainless steel valve with 1/4 in. FNPT connections offers reliable shut-off, low torque operation, and blow-out resistance. With industry-leading design and 100% factory testing, it ensures durability and optimal flow performance, making it ideal for critical industrial environments.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note

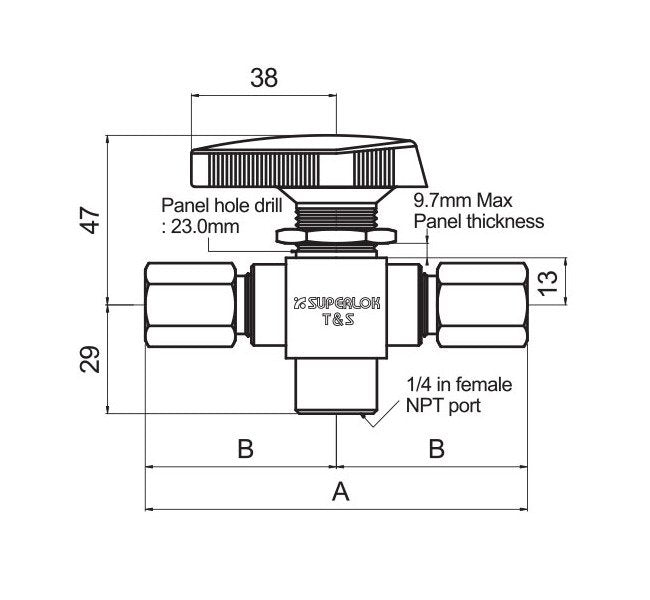

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Two-Way Valve
Technical Specs Body Material
Stainless Steel
Technical Specs Dimension A
99.8 mm
Technical Specs Dimension B
50.0 mm
Technical Specs Flow Coefficients Cv
1.0
Technical Specs Inlet End Connections
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
