SBTH Series Trunnion Ball Valve 3.8mm Orifice, 6mm Inlet End Connections
SBTH Series Trunnion Ball Valve 3.8mm Orifice, 6mm Inlet End Connections
SKU:SBT-f8039b
Reliable 3-way trunnion ball valve with 3.8mm orifice, PEEK bearings, and 6mm Superlok® connections for high-pressure applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
SBTH Series Trunnion Ball Valve 3.8mm Orifice, 6mm Inlet End Connections
$299.99
Quantity: 1
Claim Your Seller Account
SBTH Series Trunnion Ball Valve 3.8mm Orifice, 6mm Inlet End Connections
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBTH Series Trunnion Ball Valve is a robust solution for reliable shut-off and switching functions in high-pressure applications up to 10,000 psig. Featuring PEEK trunnion bearings for extended cycle life, this valve boasts a compact design with low operating torques and spring-loaded seats. With a 3-way configuration and 6mm Superlok® inlet end connections, it offers blow-out resistance and maximum flow. Ideal for extreme conditions, this valve meets the highest standards for durability and performance.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note

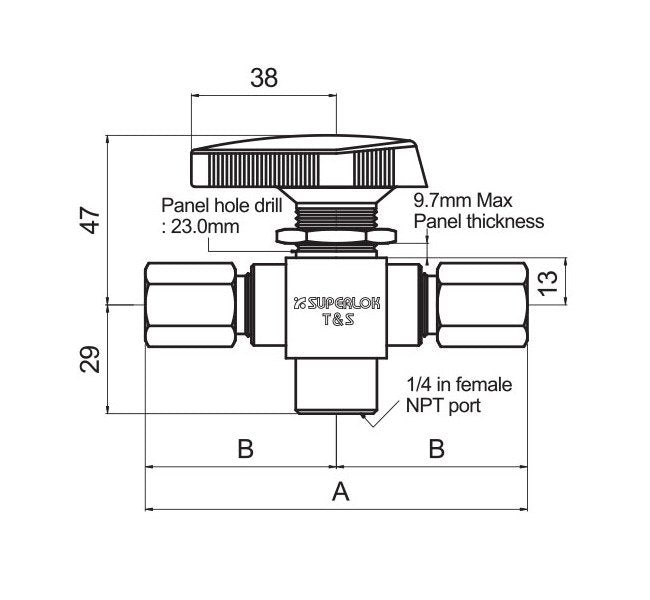

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Three-Way Valve
Technical Specs Body Material
Stainless Steel
Technical Specs Dimension A
105 mm
Technical Specs Dimension B
52.6 mm
Technical Specs Flow Coefficients Cv
0.75
Technical Specs Inlet End Connections
6 mm Superlok®
Technical Specs Orifice Size
3.8 mm
Technical Specs Outlet End Connections
6 mm Superlok®
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
