SBTH Series Trunnion Ball Valve 4.8mm Orifice, 1/4" Inlet, SUPERLOK®
SBTH Series Trunnion Ball Valve 4.8mm Orifice, 1/4" Inlet, SUPERLOK®
SKU:SBT-3650f2
Reliable shut-off, enhanced durability, and low torques up to 10,000 psig, with PEEK trunnion bearings for extended life and blow-out resistance.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
SBTH Series Trunnion Ball Valve 4.8mm Orifice, 1/4" Inlet, SUPERLOK®
$189.99
Quantity: 1
Claim Your Seller Account
SBTH Series Trunnion Ball Valve 4.8mm Orifice, 1/4" Inlet, SUPERLOK®
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBTH Series Trunnion Ball Valve offers reliable shut-off and switching functions, with upper and lower trunnion bearings enhancing resistance against seizure. Featuring a compact design with spring-loaded seats, this valve ensures high cycle life and low torques at pressures up to 10,000 psig. With PEEK trunnion bearings for extended cycle life, blow-out resistant ball/stem, and compact design, it guarantees optimal performance in extreme applications.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note

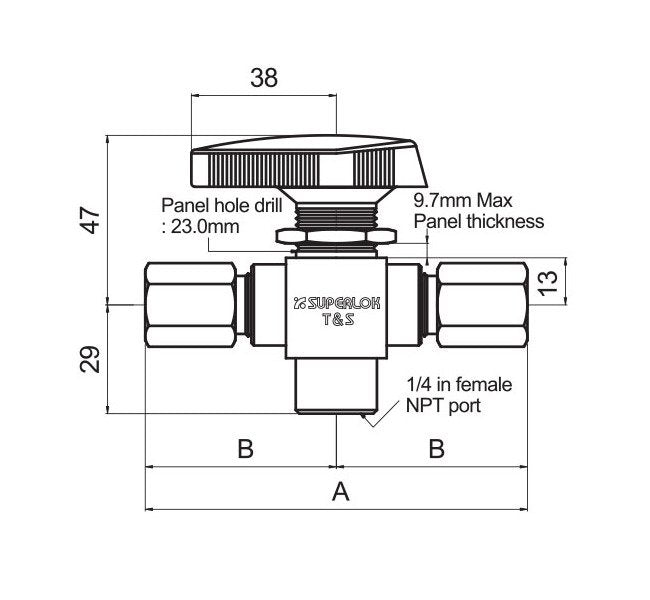

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Two-Way Valve
Technical Specs Body Material
Stainless Steel
Technical Specs Dimension A
105 mm
Technical Specs Dimension B
52.6 mm
Technical Specs Flow Coefficients Cv
1.6
Technical Specs Inlet End Connections
1/4 in. SUPERLOK®
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
1/4 in. SUPERLOK®
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
