SBTH Series Trunnion Ball Valve - 4.8mm Orifice, 1/8" FNPT Inlet, High Pressure
SBTH Series Trunnion Ball Valve - 4.8mm Orifice, 1/8" FNPT Inlet, High Pressure
SKU:SBT-b3464d
Reliable SBTH Series Trunnion Ball Valve with PEEK bearings, high pressure performance, and rugged design for durability in extreme conditions.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
SBTH Series Trunnion Ball Valve - 4.8mm Orifice, 1/8" FNPT Inlet, High Pressure
$259.99
Quantity: 1
Claim Your Seller Account
SBTH Series Trunnion Ball Valve - 4.8mm Orifice, 1/8" FNPT Inlet, High Pressure
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBTH Series 4.8mm Orifice Trunnion Ball Valve features PEEK trunnion bearings for extended cycle life, blow-out resistant design, low operating torque, and high pressure performance up to 6000 psi. With stainless steel body, two-way configuration, and spring-loaded seats, it ensures reliable shut-off in extreme conditions. Ideal for institutional applications requiring superior quality and durability.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Two-Way Valve
Technical Specs Body Material
Stainless Steel

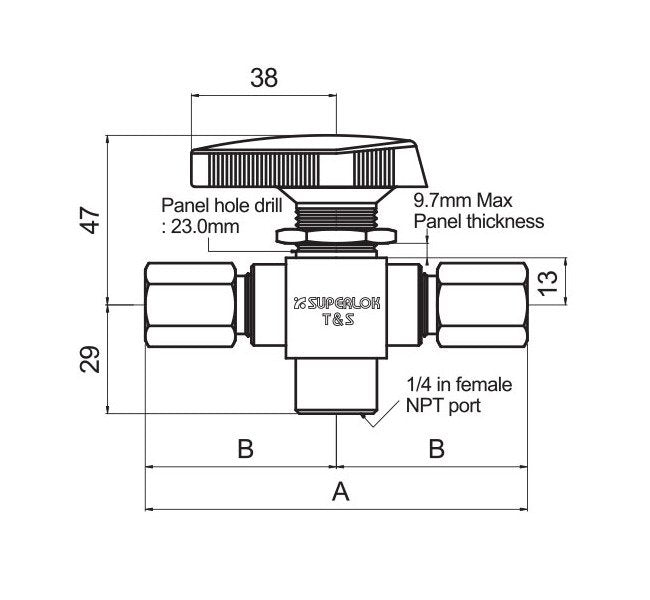

Technical Specs Dimension A
74.7 mm
Technical Specs Dimension B
37.3 mm
Technical Specs Flow Coefficients Cv
1.20
Technical Specs Inlet End Connections
1/8 in. Female National Pipe Thread (FNPT)
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
1/8 in. Female National Pipe Thread (FNPT)
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
