SBTH Series Trunnion Ball Valve with 4.8mm Orifice and 3/8" Superlok Inlet
SBTH Series Trunnion Ball Valve with 4.8mm Orifice and 3/8" Superlok Inlet
SKU:SBT-7317b1
Reliable and durable SBTH Series Trunnion Ball Valve with PEEK bearings for high cycle life & low torques. Ideal for extreme applications.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
SBTH Series Trunnion Ball Valve with 4.8mm Orifice and 3/8" Superlok Inlet
$279.99
Quantity: 1
Claim Your Seller Account
SBTH Series Trunnion Ball Valve with 4.8mm Orifice and 3/8" Superlok Inlet
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBTH Series Trunnion Ball Valve is a robust solution offering reliable shut-off and switching functions in extreme applications. Equipped with PEEK trunnion bearings for extended cycle life, this valve features a compact design with spring-loaded seats for low operating torques at pressures up to 10,000 psig. With blow-out resistant ball/stem construction and panel mountable design, this valve ensures high performance and maximum flow. Suitable for temperatures ranging from 0 to 450°F, this stainless steel valve is ideal for critical industrial operations.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note

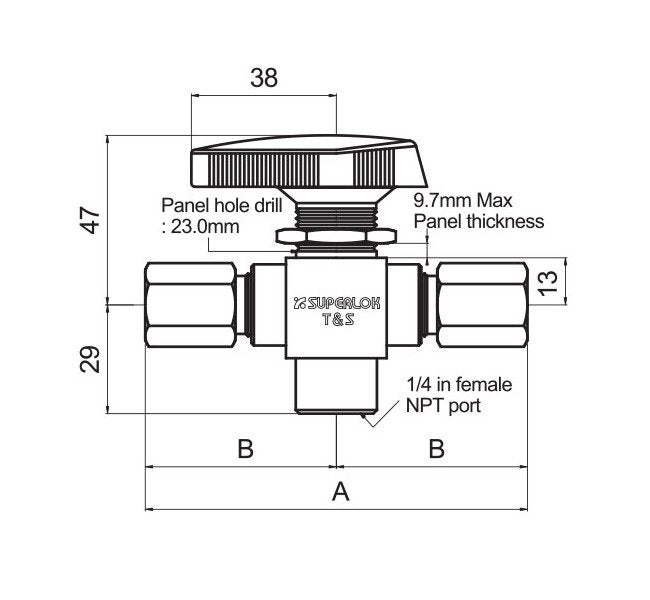

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Two-Way Valve
Technical Specs Body Material
Stainless Steel
Technical Specs Dimension A
112 mm
Technical Specs Dimension B
55.6 mm
Technical Specs Flow Coefficients Cv
1.4
Technical Specs Inlet End Connections
3/8 in. SUPERLOK®
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
3/8 in. SUPERLOK®
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
