SBV120H 1/2 Inch ISO Female One-Piece Ball Valve

SBV120H 1/2 Inch ISO Female One-Piece Ball Valve

SKU:SBV-248852

Premium SBV120H 1/2 Inch ISO Female One-Piece Ball Valve for reliable industrial performance.

Regular price $69.99
Regular price Sale price $69.99
Sale

Initiate Order

SBV120H 1/2 Inch ISO Female One-Piece Ball Valve

SBV120H 1/2 Inch ISO Female One-Piece Ball Valve

$69.99

Quantity: 1

Claim Your Seller Account

SBV120H 1/2 Inch ISO Female One-Piece Ball Valve

SBV120H 1/2 Inch ISO Female One-Piece Ball Valve

$69.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

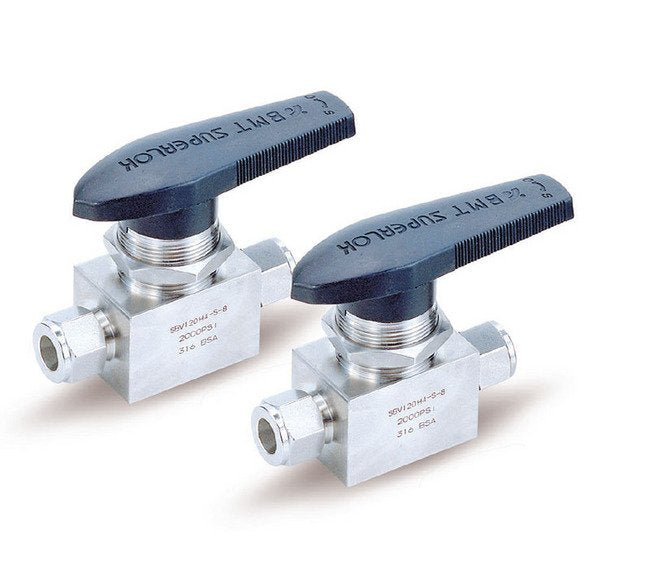

The SBV120H Series 1/2 Inch ISO Female Inlet End Connections One-Piece Type Ball Valve is a durable and versatile valve designed to meet the rigorous demands of industrial environments. With a pressure rating of 1500 psig and a tight, smooth operation, this valve offers reliable performance. Its one-piece body design, low torque operation, and various flow patterns make it ideal for diverse applications. Tested with nitrogen to ensure leak-free performance, this valve is panel mountable and features 316 Stainless Steel | Brass construction for long-lasting durability.

Product Specifications

Features Features
Simple design with one piece bodyTight and smooth, low torque and easy operationOne-piece ball stemPanel mountableVariety of End ConnectionsStraight, Angle and 3-Way flow patternsEach and every valve is tested at the factory
Note Note

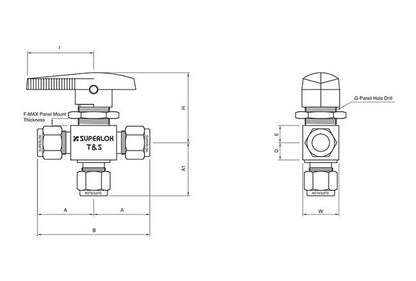

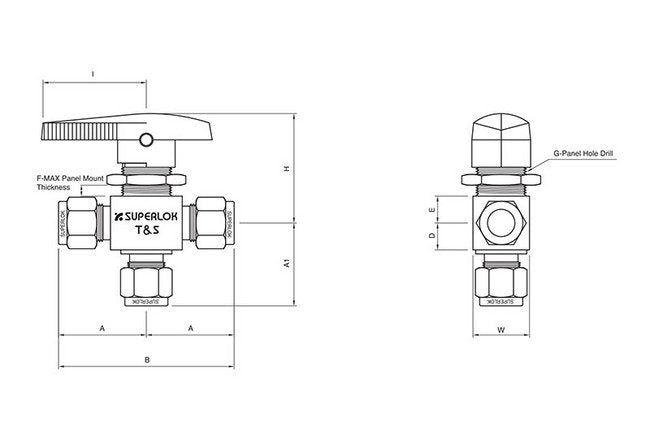

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Packing Adjustment Packing Adjustment
Valves are adjusted for factory testing at 1000 psig (69 bar).Packing must be readjusted for service at higher pressures.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
39.6 mm
Technical Specs Dimension A1
39.6 mm
Technical Specs Dimension B
79.2 mm
Technical Specs Dimension D
17.5 mm
Technical Specs Dimension E
17.5 mm
Technical Specs Dimension F
9.4 mm
Technical Specs Dimension G
38.1 mm
Technical Specs Dimension H
71.8 mm
Technical Specs Dimension I
75.0 mm
Technical Specs Dimension W
38.1 mm
Technical Specs Flow Coefficients Cv
3.5
Technical Specs Inlet End Connections
1/2 in. Female International Organization for Standardization (ISO)
Technical Specs Orifice Size
10.3 mm
Technical Specs Outlet End Connections
1/2 in. ISO Female
Technical Specs Pattern
3-Way Switching Valve
Technical Specs Pressure Rating
1500 psig | 103 bar
Technical Specs Temperature Rating With Polytetrafluoroethylene
50 to 150 ºF | 10 to 65 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig (69 bar) to maximum allowable leak rate of 0.1 SCCM.
