SBV120H 3/8 Inch SUPERLOK Inlet Ball Valve
SBV120H 3/8 Inch SUPERLOK Inlet Ball Valve
SKU:SBV-7b2c64
High-performance 3/8 inch SUPERLOK Inlet Ball Valve with durable one-piece body, tight operation, and versatile end connections. Tested to ensure reliability.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SBV120H 3/8 Inch SUPERLOK Inlet Ball Valve
$89.99
Quantity: 1
Claim Your Seller Account
SBV120H 3/8 Inch SUPERLOK Inlet Ball Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

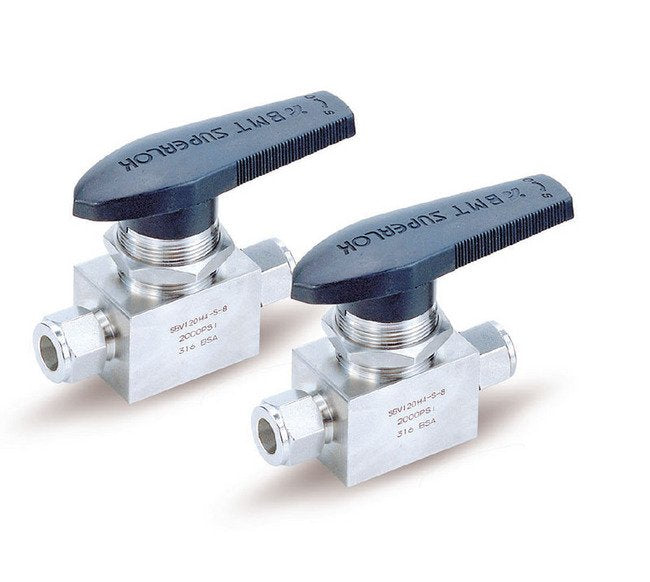

The SBV120H Series 3/8 Inch SUPERLOK Inlet Ball Valve is a high-performance solution designed to meet the stringent demands of both consumer and institutional buyers. Crafted with a one-piece body for durability, this valve offers a tight, smooth operation with low torque. With a pressure rating of up to 2500 psig and temperature rating ranging from 50 to 150°F, it ensures reliable performance in varied conditions. Tested to strict industry standards, including nitrogen testing at 1000 psig, this valve guarantees minimal leak rate. Its versatile design allows for panel mounting and offers a variety of end connections, making it a versatile choice for diverse applications.
Product Specifications
Features Features
Simple design with one piece bodyTight and smooth, low torque and easy operationOne-piece ball stemPanel mountableVariety of End ConnectionsStraight, Angle and 3-Way flow patternsEach and every valve is tested at the factory
Note Note

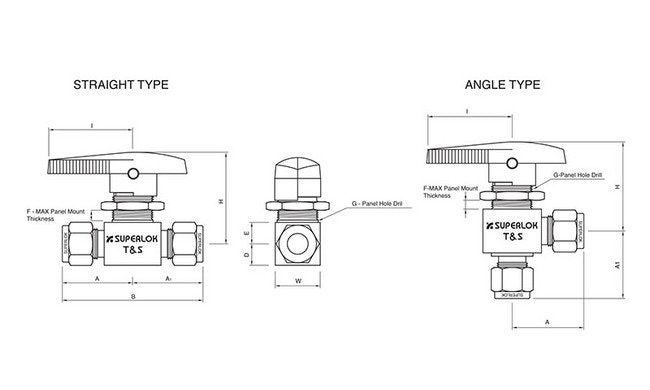

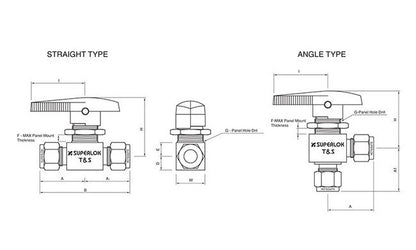

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Packing Adjustment Packing Adjustment
Valves are adjusted for factory testing at 1000 psig (69 bar).Packing must be readjusted for service at higher pressures.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
38.9 mm
Technical Specs Dimension A1
38.9 mm
Technical Specs Dimension B
77.8 mm
Technical Specs Dimension D
14.3 mm
Technical Specs Dimension E
14.2 mm
Technical Specs Dimension F
9.4 mm
Technical Specs Dimension G
28.5 mm
Technical Specs Dimension H
56.1 mm
Technical Specs Dimension I
51.0 mm
Technical Specs Dimension W
28.5 mm
Technical Specs Flow Coefficients Cv
6
Technical Specs Inlet End Connections
3/8 in. SUPERLOK®
Technical Specs Orifice Size
7.1 mm
Technical Specs Outlet End Connections
3/8 in. SUPERLOK®
Technical Specs Pattern
Angle Type 2-Way On-Off Valve | Straight Type 2-Way On-Off Valve
Technical Specs Pressure Rating
1500 psig | 2500 psig | 103 bar | 172 bar
Technical Specs Temperature Rating With Polytetrafluoroethylene
50 to 150 ºF | 10 to 65 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig (69 bar) to maximum allowable leak rate of 0.1 SCCM.
