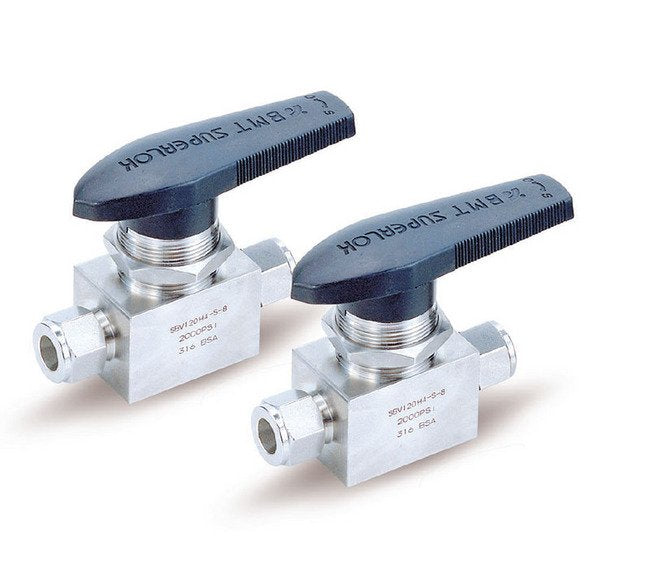

SBV120H Series 1/4 MNPT One-Piece Ball Valve
SBV120H Series 1/4 MNPT One-Piece Ball Valve
SKU:SBV-fb3f2c
High-performance 1/4 MNPT One-Piece Ball Valve for precise flow control in industrial settings. Durable construction, leak-tested at 1000 psig.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
SBV120H Series 1/4 MNPT One-Piece Ball Valve
$59.99
Quantity: 1
Claim Your Seller Account
SBV120H Series 1/4 MNPT One-Piece Ball Valve
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBV120H Series 1/4 MNPT One-Piece Ball Valve is a high-performance valve designed for reliable operation in demanding environments. With a pressure rating of up to 3000 psig, this valve ensures secure flow control. The 1.20 Cv flow coefficient, combined with 4.8 mm orifice size, offers precise control over fluid dynamics. Constructed from durable 316 stainless steel or brass, this valve is panel mountable and features a one-piece body for enhanced durability. Tested for leak-free performance at 1000 psig, it guarantees smooth and low-torque operation. Suitable for various flow patterns, this valve is a versatile choice for industrial applications.
Product Specifications
Features Features
Simple design with one piece bodyTight and smooth, low torque and easy operationOne-piece ball stemPanel mountableVariety of End ConnectionsStraight, Angle and 3-Way flow patternsEach and every valve is tested at the factory
Note Note

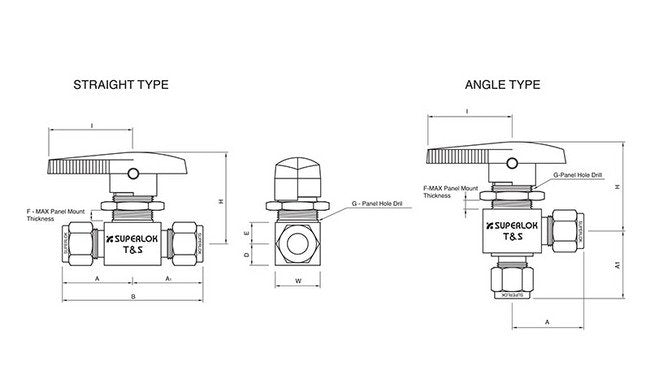

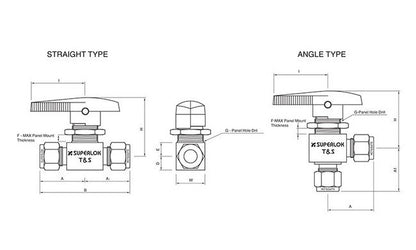

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Packing Adjustment Packing Adjustment
Valves are adjusted for factory testing at 1000 psig (69 bar).Packing must be readjusted for service at higher pressures.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
25.4 mm
Technical Specs Dimension A1
25.4 mm
Technical Specs Dimension B
50.8 mm
Technical Specs Dimension D
10.0 mm
Technical Specs Dimension E
10.0 mm
Technical Specs Dimension F
4.8 mm
Technical Specs Dimension G
19.8 mm
Technical Specs Dimension H
43.8 mm
Technical Specs Dimension I
38.5 mm
Technical Specs Dimension W
20.0 mm
Technical Specs Flow Coefficients Cv
1.20
Technical Specs Inlet End Connections
1/4 in. Male National Pipe Thread (MNPT)
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
1/4 in. Male National Pipe Thread (MNPT)
Technical Specs Pattern
Angle Type 2-Way On-Off Valve | Straight Type 2-Way On-Off Valve
Technical Specs Pressure Rating
2500 psig | 3000 psig | 172 bar | 206 bar
Technical Specs Temperature Rating With Polytetrafluoroethylene
50 to 150 ºF | 10 to 65 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig (69 bar) to maximum allowable leak rate of 0.1 SCCM.
