SBV210 Series 12.5mm Orifice Two-Piece Ball Valve
SBV210 Series 12.5mm Orifice Two-Piece Ball Valve
SKU:SBV-e71c23
Highly durable SBV210 Series 12.5mm Orifice Ball Valve for industrial applications. Tested for quality and reliability.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SBV210 Series 12.5mm Orifice Two-Piece Ball Valve
$129.99
Quantity: 1
Claim Your Seller Account
SBV210 Series 12.5mm Orifice Two-Piece Ball Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBV210 Series 12.5mm Orifice Two-Piece Ball Valve offers exceptional performance in industrial applications. With a pressure rating of 1000 psig and 316 Stainless Steel body material, this valve ensures reliability and durability. Featuring a compact design, low torque operation, and various end connections, it provides versatility and ease of use. Each valve undergoes rigorous factory testing, guaranteeing quality and performance. Ideal for both consumer and institutional buyers seeking a high-performance ball valve solution.
Product Specifications
Features Features
Compact designTight and smooth, low torque and easy operationButterfly and lever handle availableVariety of End ConnectionsEach and every valve is tested at the factory
Note Note

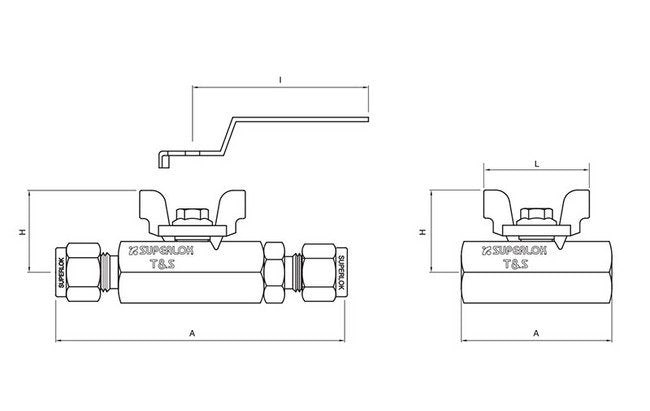

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
107.6 mm
Technical Specs Dimension H
39.0 mm
Technical Specs Dimension I
100 mm
Technical Specs Dimension L
55.0 mm
Technical Specs End Connections
16 mm SUPERLOK®
Technical Specs Flow Coefficients Cv
10.6
Technical Specs Handle
Bar Handle | Butterfly Handle (Standard)
Technical Specs Orifice Size
12.5 mm
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
1000 psig | 69 bar
