SBV210 Series 12.5mm Orifice Two-Piece Ball Valve w/ 3/4in SUPERLOK® End Connections
SBV210 Series 12.5mm Orifice Two-Piece Ball Valve w/ 3/4in SUPERLOK® End Connections
SKU:SBV-9948e5
Premium SBV210 Series 12.5mm Orifice Ball Valve for precise control and durability.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SBV210 Series 12.5mm Orifice Two-Piece Ball Valve w/ 3/4in SUPERLOK® End Connections
$129.99
Quantity: 1
Claim Your Seller Account
SBV210 Series 12.5mm Orifice Two-Piece Ball Valve w/ 3/4in SUPERLOK® End Connections
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBV210 Series 12.5mm Orifice Two-Piece Ball Valve with 3/4in SUPERLOK® End Connections is a premium-quality valve designed for precision and durability. With a pressure rating of 1000 psig | 69 bar at 70°F, this compact valve offers tight and smooth operation with low torque requirements. The valve features a variety of end connections and comes with butterfly and lever handle options for easy operation. Every valve undergoes thorough factory testing to ensure performance excellence. Crafted from high-grade 316 stainless steel or brass, it meets stringent industry standards for reliability and longevity.
Product Specifications
Features Features
Compact designTight and smooth, low torque and easy operationButterfly and lever handle availableVariety of End ConnectionsEach and every valve is tested at the factory
Note Note

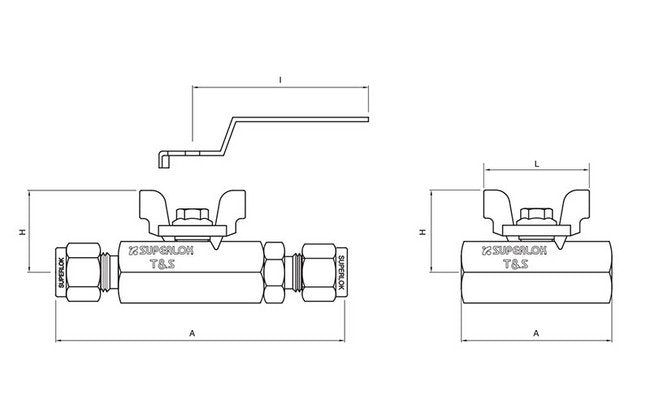

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
107.0 mm
Technical Specs Dimension H
39.0 mm
Technical Specs Dimension I
100 mm
Technical Specs Dimension L
55.0 mm
Technical Specs End Connections
3/4 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
12.7
Technical Specs Handle
Bar Handle | Butterfly Handle (Standard)
Technical Specs Orifice Size
12.5 mm
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
1000 psig | 69 bar
