SBV210 Series 12.5mm Two-Piece Ball Valve - FNPT Connections
SBV210 Series 12.5mm Two-Piece Ball Valve - FNPT Connections
SKU:SBV-43b10f
SBV210 Series 12.5mm Two-Piece Ball Valve for efficient and reliable operation in institutional settings.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SBV210 Series 12.5mm Two-Piece Ball Valve - FNPT Connections
$89.99
Quantity: 1
Claim Your Seller Account
SBV210 Series 12.5mm Two-Piece Ball Valve - FNPT Connections
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBV210 Series 12.5mm Two-Piece Ball Valve with 3/4" FNPT End Connections is designed for efficiency and durability. With a pressure rating of 1000 psig and low torque operation, this valve ensures reliable performance. Constructed with high-quality materials like 316 stainless steel, it offers tight sealing and ease of operation. Tested at the factory, this valve guarantees quality and functionality, making it ideal for industrial and institutional applications.
Product Specifications
Features Features
Compact designTight and smooth, low torque and easy operationButterfly and lever handle availableVariety of End ConnectionsEach and every valve is tested at the factory
Note Note

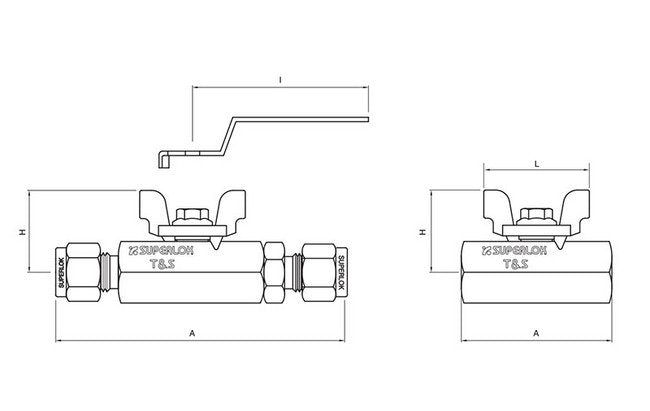

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
61.3 mm
Technical Specs Dimension H
39.0 mm
Technical Specs Dimension I
100 mm
Technical Specs Dimension L
55.0 mm
Technical Specs End Connections
3/4 in. Female National Pipe Thread (FNPT)
Technical Specs Flow Coefficients Cv
12.7
Technical Specs Handle
Bar Handle | Butterfly Handle (Standard)
Technical Specs Orifice Size
12.5 mm
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
1000 psig | 69 bar
