SBV210 Series 16.0mm Orifice Two-Piece Ball Valve
SBV210 Series 16.0mm Orifice Two-Piece Ball Valve
SKU:SBV-bed137
Experience precision flow control with the SBV210 Series 16.0mm Orifice Two-Piece Ball Valve, designed for durability and reliability.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SBV210 Series 16.0mm Orifice Two-Piece Ball Valve
$89.99
Quantity: 1
Claim Your Seller Account
SBV210 Series 16.0mm Orifice Two-Piece Ball Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBV210 Series 16.0mm Orifice Two-Piece Ball Valve is a high-performance solution designed for precision flow control. With a pressure rating of 1000 psig, this valve ensures reliable operation in diverse applications. Made from premium materials like 316 Stainless Steel and Brass, it offers durability and corrosion resistance. The compact design, low torque operation, and various handle options make it easy to use. Each valve undergoes rigorous testing for quality assurance, meeting the highest industry standards.
Product Specifications
Features Features
Compact designTight and smooth, low torque and easy operationButterfly and lever handle availableVariety of End ConnectionsEach and every valve is tested at the factory
Note Note

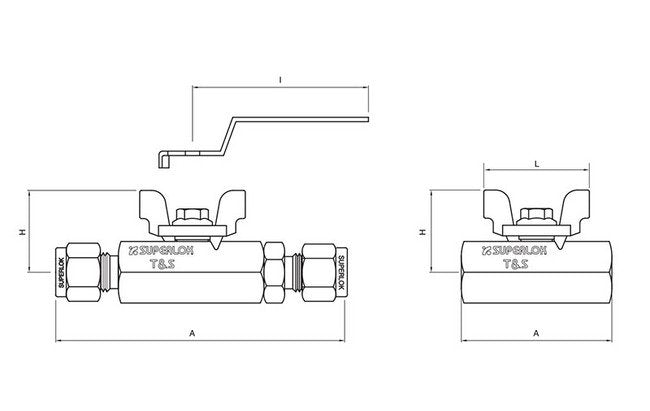

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
131.0 mm
Technical Specs Dimension H
45.0 mm
Technical Specs Dimension I
100 mm
Technical Specs Dimension L
68.0 mm
Technical Specs End Connections
1 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
17.5
Technical Specs Handle
Bar Handle | Butterfly Handle (Standard)
Technical Specs Orifice Size
16.0 mm
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
1000 psig | 69 bar
