SBV210 Series 16.0mm Orifice Two-Piece Ball Valve with 1in SUPERLOK End Connections
SBV210 Series 16.0mm Orifice Two-Piece Ball Valve with 1in SUPERLOK End Connections
SKU:SBV-4ed399
High-quality SBV210 Series 16.0mm Orifice Ball Valve with SUPERLOK End Connections for industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SBV210 Series 16.0mm Orifice Two-Piece Ball Valve with 1in SUPERLOK End Connections
$129.99
Quantity: 1
Claim Your Seller Account
SBV210 Series 16.0mm Orifice Two-Piece Ball Valve with 1in SUPERLOK End Connections
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBV210 Series 16.0mm Orifice Two-Piece Ball Valve with 1in SUPERLOK End Connections is a reliable solution designed for industrial applications. With a pressure rating of 1000 psig, this valve offers secure tightness, low torque operation, and easy handling. Constructed with 316 stainless steel or brass body material, it ensures durability and performance. Tested at the factory, this valve guarantees quality and smooth operation. Ideal for diverse end connections, this valve meets stringent industry standards for precision and efficiency.
Product Specifications
Features Features
Compact designTight and smooth, low torque and easy operationButterfly and lever handle availableVariety of End ConnectionsEach and every valve is tested at the factory
Note Note

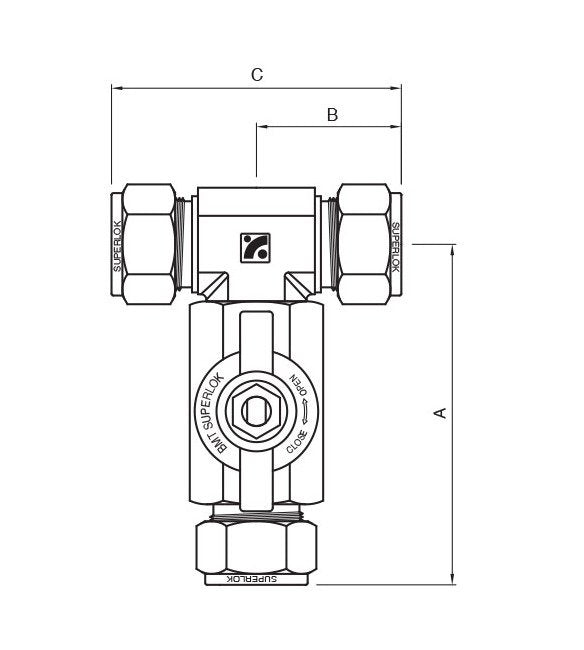

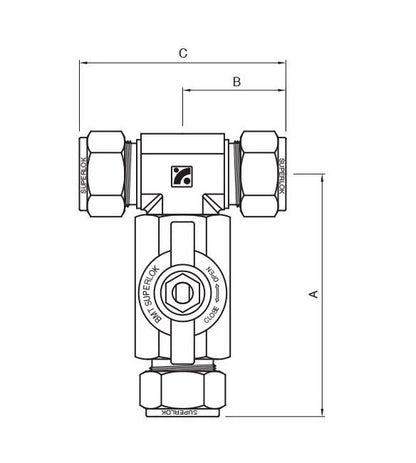

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
115.3 mm
Technical Specs Dimension B
49.0 mm
Technical Specs Dimension C
98.0 mm
Technical Specs End Connections
1 in. SUPERLOK®
Technical Specs Handle
Bar Handle | Butterfly Handle (Standard)
Technical Specs Orifice Size
16.0 mm
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
1000 psig | 69 bar
